2-Speed Hand Operated Hydraulic Pumps with Reservoirs
2-Speed Hand Operated Hydraulic Pumps with Reservoirs
SKU:HYD-b3517e
Efficient 2-Speed Hydraulic Pumps for precise pressure control. Durable steel construction with adjustable overload relief valve and manual pressure release.
Regular price
$856.00
Regular price
Sale price
$856.00
Unit price
per
Initiate Order
2-Speed Hand Operated Hydraulic Pumps with Reservoirs
$856.00
Quantity: 1
Claim Your Seller Account
2-Speed Hand Operated Hydraulic Pumps with Reservoirs
$856.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

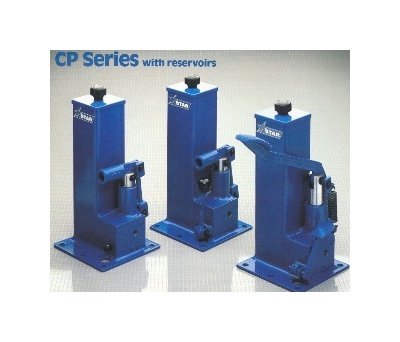

The 2-Speed Hand Operated Hydraulic Pumps with Reservoirs from the CP & CPS Series are designed for efficient performance in a variety of applications. These pumps feature a unique two-speed operation that allows for rapid movement at low pressure and automatic switching to high pressure when maximum force is needed. With features like an adjustable overload relief valve, manual pressure release valve, and steel pump bodies with hard chrome plated pistons, these pumps offer reliability and durability. Available in different reservoir sizes and equipped with a 24” operating lever, these pumps are versatile and user-friendly, meeting the demands of both consumer and institutional buyers.
Product Specifications
Specifications Adjustable Overload Relief Valve
Yes
Specifications Body Material
Steel
Specifications Lever Load Per 1000 Psi
12.0 lb
Specifications List Price
856 USD
Specifications Manual Pressure Release Valve
Yes
Specifications Maximum Pressure Rating
10000 psi
Specifications Net Weight
36 lb
Specifications Oil Reservoir
true
Specifications Operating Lever Size
24 in
Specifications Outlet Port Size Nptf
3/8
Specifications Piston
Hard Chrome Plated
Specifications Piston Diameter
1 1/4-1/2 in
Specifications Release
Cam Release
Specifications Reservoir Volume
160 in³
Specifications Series
CP
Specifications Volume Per Stroke Large Piston To 300 Psi Approx
1.84 in³
Specifications Volume Per Stroke Small Piston Above 300 Psi Appr
0.29 in³
Technical Information 0
Limited WarrantyAll Star pumps are covered by a limited warranty on materials and workmanship for one year from the date of manufacture. Star will repair or replace at its option any pump in which Star finds manufacturing defects. In order to get warranty service a pump must be returned to the Star plant freight prepaid with a written explanation of the problem.Technical DataLight hydraulic oil is recommended for use with Star pumps. Oils with SUS viscosity of 75 to 150 at 100 degrees Fahrenheit will give satisfactory performance (ISO grade 15, 22, or 32). In an emergency situation when the above oils are not available, use 5 W or 10 W motor oil or automatic transmission fluid.All exposed surfaces of standard Star pumps are painted with one coat of industrial quality paint. Pumps painted with special colors with two coat finishes, or with prime coat only, and pumps with special plated or polished parts, are also available.
