2" Stainless Steel Flanged PWR-FLO™ AODD Pump with Buna-N Diaphragm

2" Stainless Steel Flanged PWR-FLO™ AODD Pump with Buna-N Diaphragm

MAN-e73db9

Efficient stainless steel 2" flanged AODD pump for industrial use, featuring Buna-N diaphragm and anti-stalling design for reliable liquid transfer.

$1,899.99
$1,899.99
Sale

Initiate Order

2" Stainless Steel Flanged PWR-FLO™ AODD Pump with Buna-N Diaphragm

2" Stainless Steel Flanged PWR-FLO™ AODD Pump with Buna-N Diaphragm

$1,899.99

Quantity: 1

Claim Your Seller Account

2" Stainless Steel Flanged PWR-FLO™ AODD Pump with Buna-N Diaphragm

2" Stainless Steel Flanged PWR-FLO™ AODD Pump with Buna-N Diaphragm

$1,899.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

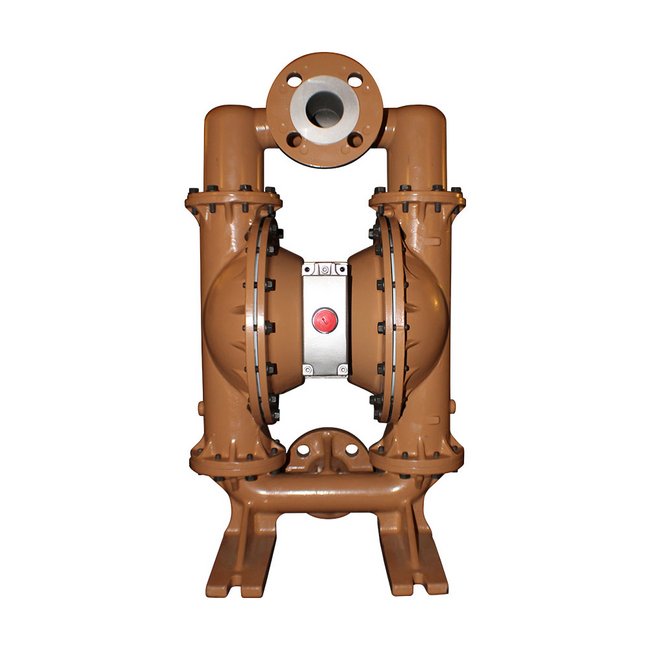

The 2" Stainless Steel Flanged PWR-FLO™ AODD Pump with Buna-N Diaphragm from NOMAD® is a reliable drop-in replacement for Wilden® AODD pumps, ideal for handling large solids and slurries. Its innovative asymmetrical spool design ensures efficient air utilization, making it perfect for on/off liquid transfer applications. With a stainless steel body, Buna-N diaphragm and ball, this pump offers durability and chemical resistance. Capable of handling solids up to 0.25 inches, it boasts a maximum flow rate of 158 gpm. Measuring 17" x 13" x 30" and meeting Schedule B Code 8413.50.00.50, this pump ensures reliability and performance for industrial and institutional needs.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Curves 0

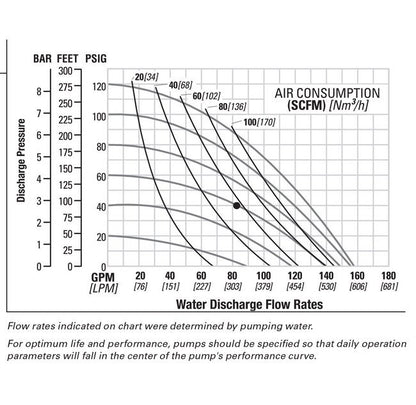

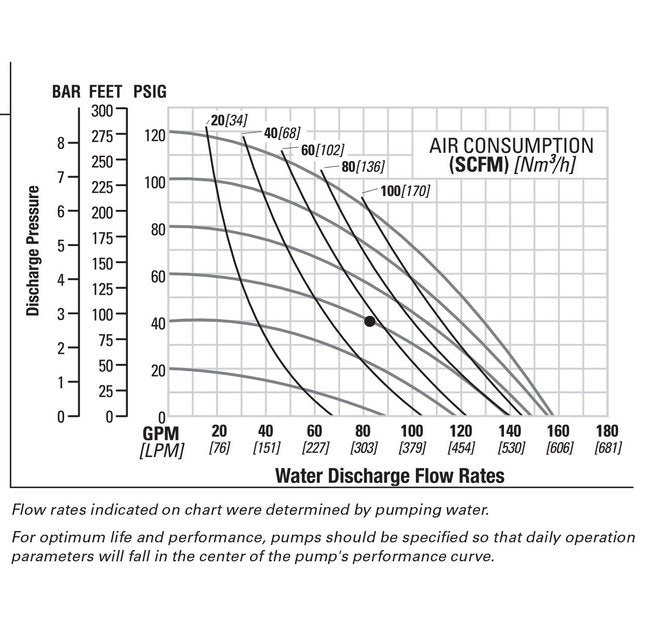

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO™ asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications The air valve and center section is made of chemically resistant polypropylene.
Specifications Ball Moc
Buna - N/ Nitrile
Specifications Check Valve Seat
Buna - N/Nitrile
Specifications Customs Code
Schedule B Code 8413.50.00.50HS Code 8413.50.00
Specifications Diaphragm Material
Buna - N/ Nitrile
Specifications Displacement Per Cycle
0.73 gal | 2.76 lit
Specifications Elastomers
Buna - N/Nitrile, Buna - N/ Nitrile, Buna - N/ Nitrile
Specifications Fluid Inlet Size
2 Flanged in | 51 Flanged mm
Specifications Fluid Outlet Size
2 Flanged in | 51 Flanged mm
Specifications Height
30 Inch | 30 in | 759.46 mm
Specifications Length
17 Inch | 17 in | 0.4394 m | 439.42 mm
Specifications Max Flow Rate
158 gpm | 598.10 lpm
Specifications Moc
Stainless Steel
Specifications Model
NPF50/SAAA/BN/BN/BN/FL/B/X
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
50-1846
Specifications Solids Handling
0.25 in | 6 mm
Specifications Wetted Moc
Stainless Steel
Specifications Width
13 Inch | 13 in | 0.3404 m | 340.36 mm
