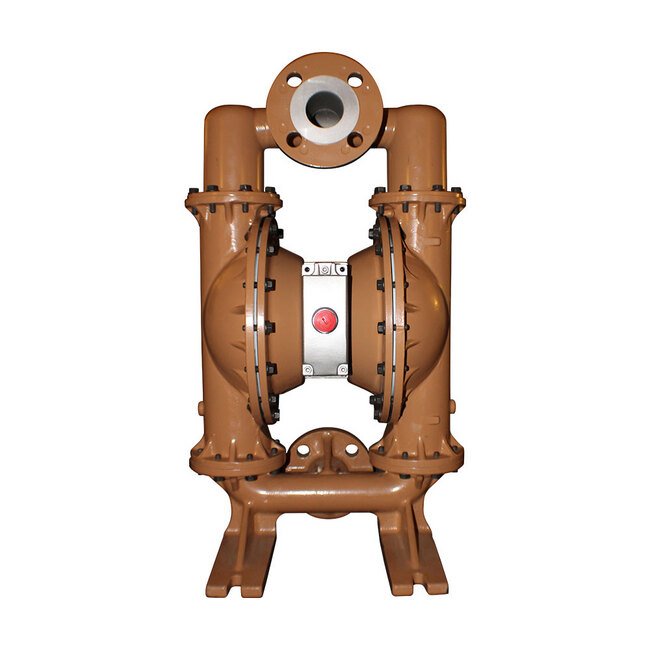

2" Stainless Steel Pwr-Flo AODD Pump, Nordel/EPDM Diaphragm
2" Stainless Steel Pwr-Flo AODD Pump, Nordel/EPDM Diaphragm
SKU:MAN-579b05
High-performance 2" Stainless Steel Pwr-Flo AODD Pump for efficient liquid transfer. Durable, reliable, and compliant with industry standards.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
2" Stainless Steel Pwr-Flo AODD Pump, Nordel/EPDM Diaphragm
$1,899.99
Quantity: 1
Claim Your Seller Account
2" Stainless Steel Pwr-Flo AODD Pump, Nordel/EPDM Diaphragm
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 2" Stainless Steel Pwr-Flo AODD Pump with Nordel/EPDM Diaphragm from the NOMAD PWR-FLO series is a high-performance, drop-in replacement for Wilden AODD pumps. Built with stainless steel and Nordel/EPDM diaphragms, this pump is designed to handle large solids and slurries efficiently. The PWR-FLO asymmetrical spool design ensures reliable on/off liquid transfer, making it perfect for filling and batching applications. With a maximum flow rate of 158 gpm and compliance with industry standards, this pump guarantees durability and optimal performance for various industrial settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

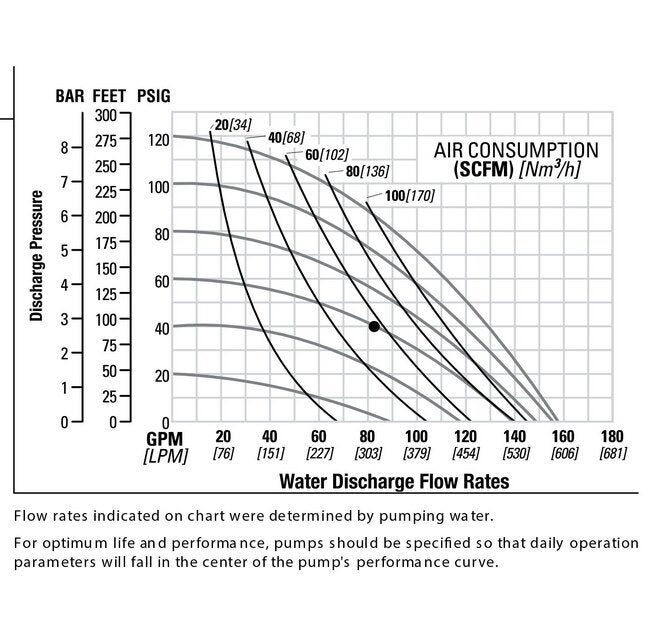

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applicationsThe air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Nordel®/EPDM
Specifications Customs Code
Schedule B Code 8413.50.00.50
Specifications Diaphragm Material
Nordel®/EPDM
Specifications Displacement Per Cycle
0.73 gal | 2.76 lit
Specifications Elastomers
Nordel®/EPDM, Nordel®/EPDM
Specifications Fluid Inlet Size
2 in | 51 mm
Specifications Fluid Outlet Size
2 Flange in | 51 Flange mm
Specifications Height
30 Inch | 30 in | 759.46 mm
Specifications Length
17 Inch | 17 in | 0.4394 m | 439.42 mm
Specifications Max Flow Rate
158 gpm | 598.10 lpm
Specifications Model
NPF50/SAAA/ND/ND/ND/FL/B/X
Specifications Non Wetted Material
Aluminum
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
50-1847-1
Specifications Solids Handling
0.25 in | 6 mm
Specifications Wetted Moc
Stainless Steel
Specifications Width
13 Inch | 13 in | 0.3404 m | 340.36 mm
