2" US Style Socket Weld Check Valve, 0.500 psi Standard Cracking Pressure
2" US Style Socket Weld Check Valve, 0.500 psi Standard Cracking Pressure
SKU:USS-b2531e
Rugged US Style Check Valve for minimal pressure drop and versatile applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
2" US Style Socket Weld Check Valve, 0.500 psi Standard Cracking Pressure
$129.99
Quantity: 1
Claim Your Seller Account
2" US Style Socket Weld Check Valve, 0.500 psi Standard Cracking Pressure
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

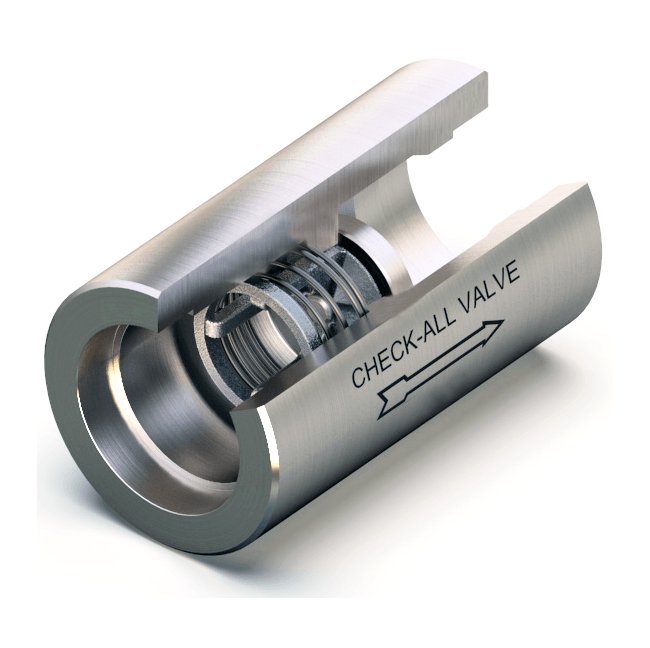

The 2" US Style Universal Socket Weld Check Valve offers reliable performance with its one-piece stainless steel body, designed for minimal pressure drop. Featuring Check-All® trim, this valve provides a wide selection of seat materials and cracking pressures. Machined to ASME/ANSI B16.11 dimensions, it can also function as a low-pressure relief valve or vacuum breaker with adjustable spring settings. Suited for various applications, this valve ensures durability, efficiency, and versatility.
Product Specifications
Caution
Please take sufficient measures when welding to prevent heat build-up and possible damage to the valve seat.
Note
Many valves in this series can be supplied with B16.34 certification. Consult the factory for more information.Made in USA.
Specifications Body Material
316 Stainless Steel = SS | 316L Stainless Steel = SS | Alloy 20 = A2 | Alloy B = HB | Alloy C-276 = HC | Carbon Steel = CS | Monel® 400 or Alloy R405 = MO
Specifications Body Material Availability
316/316L Stainless Steel (SS) - Standard | Alloy 20 (A2) - Semi-Standard | Alloy B (HB) - Contact the factory for these or other materials | Alloy C-276 (HC) - Semi-Standard | Carbon Steel (CS) - Standard | Monel® 400 or Alloy R405 - Semi-Standard
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Nominal Pipe Size
2 in
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
5000 psig
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Note For Standard Cracking Pressure
0.500 psi is the only standard cracking pressure for spring materials other than Stainless Steel.
Specifications Seat Material
"Metal-to-Metal" = MT | Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Polytetrafluoroethylene (PTFE) = TF
Specifications Size Code
K
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
0.500 psi
Specifications Valve Style
US
