2" US Style Universal Socket Weld Check Valve - 1.50 psi Cracking Pressure
2" US Style Universal Socket Weld Check Valve - 1.50 psi Cracking Pressure
SKU:USS-a0f360
Dependable 2" US Style Universal Socket Weld Check Valve with 1.50 psi Cracking Pressure, ideal for varied industrial applications.
Regular price
$359.99
Regular price
Sale price
$359.99
Unit price
per
Initiate Order
2" US Style Universal Socket Weld Check Valve - 1.50 psi Cracking Pressure
$359.99
Quantity: 1
Claim Your Seller Account
2" US Style Universal Socket Weld Check Valve - 1.50 psi Cracking Pressure
$359.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

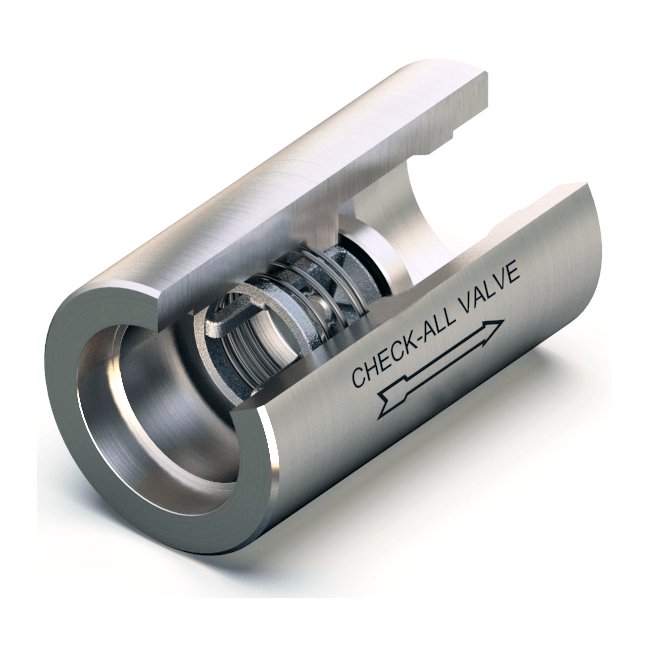

Experience unrivaled durability and performance with the 2" US Style Universal Socket Weld Check Valve featuring a rugged one-piece body crafted from premium 316 Stainless Steel. Engineered for minimal pressure drop, this valve offers versatile seat material options and precise cracking pressure settings. Ideal for low pressure relief and vacuum breaking, it complies with ASME/ANSI B16.11 dimensions and boasts a non-shock pressure rating of 5000 psig. Enhance your industrial operations with this dependable Check-All® valve, proudly made in the USA.
Product Specifications
Caution
Please take sufficient measures when welding to prevent heat build-up and possible damage to the valve seat.
Note
Many valves in this series can be supplied with B16.34 certification. Consult the factory for more information.Made in USA.
Specifications Body Material
316 Stainless Steel = SS | 316L Stainless Steel = SS | Alloy 20 = A2 | Alloy B = HB | Alloy C-276 = HC | Carbon Steel = CS | Monel® 400 or Alloy R405 = MO
Specifications Body Material Availability
316/316L Stainless Steel (SS) - Standard | Alloy 20 (A2) - Semi-Standard | Alloy B (HB) - Contact the factory for these or other materials | Alloy C-276 (HC) - Semi-Standard | Carbon Steel (CS) - Standard | Monel® 400 or Alloy R405 - Semi-Standard
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Nominal Pipe Size
2 in
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
5000 psig
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Seat Material
"Metal-to-Metal" = MT | Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Polytetrafluoroethylene (PTFE) = TF
Specifications Size Code
K
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
1.50 psi
Specifications Valve Style
US
