2 x 2 Intermediate Spacer for Underground Ducts - Single Spacer
2 x 2 Intermediate Spacer for Underground Ducts - Single Spacer
SKU:CON-060c21
Secure and align underground ducts effortlessly with the 2 x 2 Single Intermediate Spacer. Easy assembly, strong interlock, and compliance with institutional standards.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
2 x 2 Intermediate Spacer for Underground Ducts - Single Spacer
$49.99
Quantity: 1
Claim Your Seller Account
2 x 2 Intermediate Spacer for Underground Ducts - Single Spacer
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

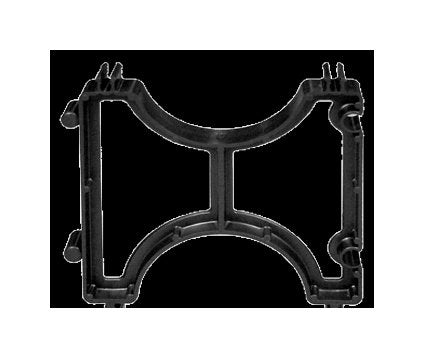

The 2 x 2 Intermediate Spacer is a crucial component for secure and efficient underground duct installations. Designed with completely locked-in construction, this single spacer eliminates the need for banding, ensuring fast and uncomplicated field assembly. With unique features like vertical and horizontal interlocking, it provides a solid support system that prevents separation, making alignment of duct bank sections a breeze. This spacer meets various institutional procurement requirements, making it a reliable choice for both EB and DB installations.
Product Specifications
Features
Alignment of the duct bank sections is uncomplicated with this completely locked-in construction. | Banding is not necessary. | Field Assembly is fast and secure. | Only two components, base and intermediate, are needed. | Spacers lock firmly together, preventing separation. | They snap together, vertically, slide together horizontally. | To prevent the top tier from floating during encased burial, we recommend using tie wire, cap straps, or a base spacer on the top run for a flat surface during concrete encasement depending on your job specifications.Used in both EB and DB installations | With the Vertical-lok spacer, ducts are accurately separated.
Specifications Pipe Diameter
2 in
Specifications Pipe Separation
2 in
Specifications Standard Pack
300
Specifications Type
Single Intermediate Spacer
Specifications Weight
28 lb
