20.0mm M6 Thread Open End Cylindrical Rivet Nut
20.0mm M6 Thread Open End Cylindrical Rivet Nut
SKU:PSE-a720f9
Get a secure, flush fit with the P-Series 20.0mm M6 Thread Rivet Nut. Ideal for industrial applications. Find steel, stainless steel & aluminum options.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
20.0mm M6 Thread Open End Cylindrical Rivet Nut
$12.99
Quantity: 1
Claim Your Seller Account
20.0mm M6 Thread Open End Cylindrical Rivet Nut
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

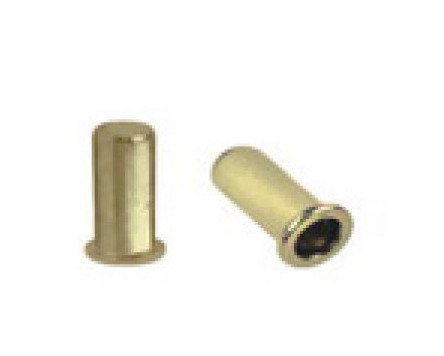

The P-Series 20.0mm Dimension L and M6 Thread Size Open End Cylindrical Head Rivet Nut manufactured by Ornit is a high-quality fastening solution designed for industrial applications. Made of durable steel with a yellow zinc plated finish, this rivet nut offers a secure grip range from 1.0mm to 2.5mm. Its cylindrical flat head style ensures a flush fit, and the 9.1mm hole size accommodates various fastening needs. It is also available in stainless steel and aluminum options with serration style variations. Compliant with Federal/DoD procurement standards and suitable for use in diverse industries.

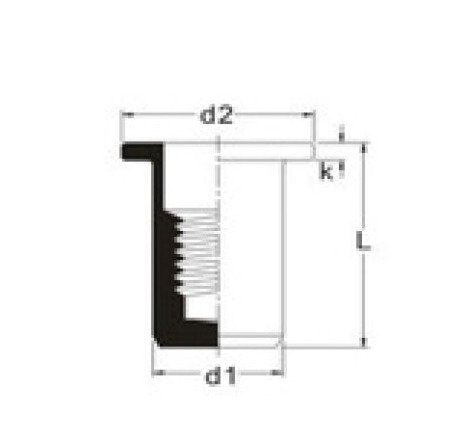

Product Specifications
Dimensions Dimension D1
9.0 mm
Dimensions Dimension D2
12.0 mm
Dimensions Dimension K
1.5 mm
Dimensions Dimension L
20.0 mm
Dimensions Hole Size
9.1 mm
Dimensions Maximum Grip Range
2.5 mm
Dimensions Minimum Grip Range
1.0 mm
Note Note
Stainless Steel & Aluminum are available. Serration style is available.
Technical Specs Brands
Ornit
Technical Specs Finish
Yellow Zinc Plated
Technical Specs Head Style
Cylindrical Head (Flat)
Technical Specs Material
Steel
Technical Specs Rivet Type
Open End
Technical Specs Thread Size
M6
