20-25A Manual Motor Starter with Phase Failure Sensitivity
20-25A Manual Motor Starter with Phase Failure Sensitivity
SKU:MOT-4b0b91
Reliable manual motor starter with 20-25 A range and phase failure protection
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
20-25A Manual Motor Starter with Phase Failure Sensitivity
$129.99
Quantity: 1
Claim Your Seller Account
20-25A Manual Motor Starter with Phase Failure Sensitivity
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Shamrock Controls Manual Motor Starter offers reliable protection against overloads and short circuits, featuring a setting current range of 20 to 25 A. It ensures phase failure sensitivity in compliance with EN 60947-4-1 and IEC 947-4-1 standards, making it ideal for controlling AC electric motors up to 11 kW. This starter is designed for simple and fast mounting with a 35mm wide rail, suitable for both 1 phase and 3 phase systems, with a variety of auxiliary circuit options available.
Product Specifications

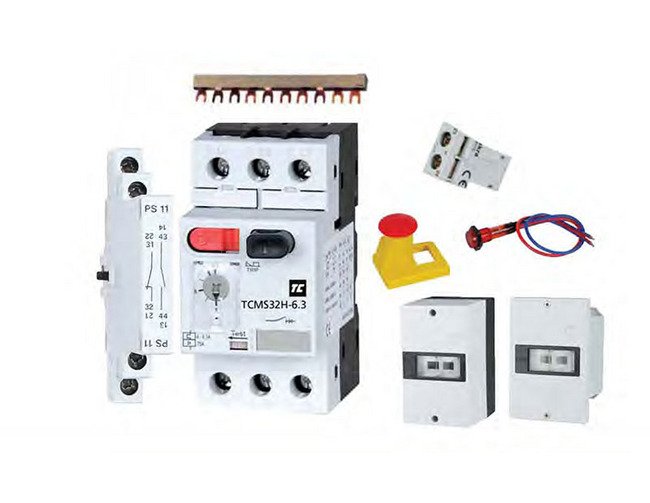

Accessories Accessories
Item #: TCHSV01Item Name: Front Mount Auxiliary SwitchContact Type: 1NCItem #: TCHSV10Item Name: Front Mount Auxiliary SwitchContact Type: 1NOItem #: TCHS11Item Name: Side Mount Auxiliary SwitchContact Type: 1NO + 1NCItem #: TCHS20Item Name: Side Mount Auxiliary SwitchContact Type: 2 NOItem #: TCHRS10Item Name: Trip Indication Contact BlockDescription: 1NO Auxiliary ContactItem #: TCHRS01Item Name: Trip Indication Contact BlockDescription: 1NC Auxiliary ContactItem #: TCMSHOItem Name: Enclosure (IP55)Description: Flush Mounted TypeItem #: TCMSFPItem Name: Enclosure (IP55)Description: Surface Mounted TypeItem #: TCES-TItem Name: Emergency Stop ButtonDescription: Red - Emergency StopItem #: TCSS1Item Name: Signal Lamp - WhiteDescription: Lamp (Available in 24V, 120V, 240V)Item #: TCSS3Item Name: Signal Lamp - GreenDescription: Lamp (Available in 24V, 120V, 240V)Item #: TCSS4Item Name: Signal Lamp - RedDescription: Lamp (Available in 24V, 120V, 240V)Item #:TCMSURItem Name: Voltage ReleasesDescription: Under Voltage Release (24-600 VAC)Item #:TCMSARItem Name: Voltage ReleasesDescription: Short Release (24-600 VAC)
Additional Information Additional Information
Main application field : control (start-up, protection and switch-off) of A.C. electric motors with power up to 11 kW (380/400 V) or other consumers up to 25 A; it can also be used as the main switch according to EN 60204 standardsNumerous accessories make the application field wider and enable the fulfillment of the majority of user's demands
Auxiliary Circuit Data Electrical Rating According To Internatio
0.1 A
Auxiliary Circuit Data Rated Insulation Voltage For Front Auxili
300 V
Auxiliary Circuit Data Rated Insulation Voltage For Side Auxilia
500 V
Auxiliary Circuit Data Terminal Capacity For Front Auxiliary Con
0.75 to 2.5 mm²
Auxiliary Circuit Data Terminal Capacity For Side Auxiliary Cont
0.75 to 2.5 mm²
Auxiliary Circuit Data Thermal Current Ith For Front Auxiliary C
1 A
Auxiliary Circuit Data Thermal Current Ith For Side Auxiliary Co
5 A
Auxiliary Circuit Data Tightning Torque For Front Auxiliary Cont
1 N·m
Auxiliary Circuit Data Tightning Torque For Side Auxiliary Conta
1 N·m
Auxiliary Circuit Data Uvtshunt Release Control Voltage
24 to 600 V
Auxiliary Circuit Data Uvtshunt Release Rated Frequency
50 Hz | 60 Hz
Auxiliary Circuit Data Uvtshunt Release Terminal Capacity
0.75 to 2.5 mm²
Auxiliary Circuit Data Uvtshunt Release Tightning Torque
1 N·m

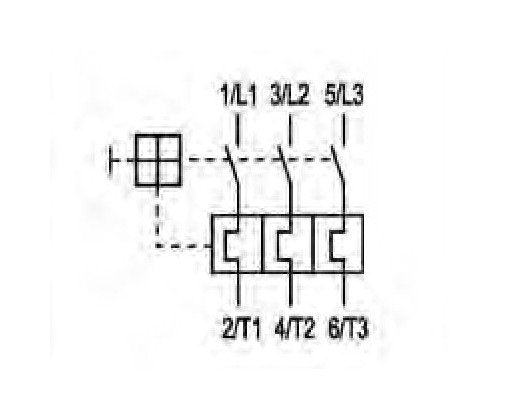

Main Circuit Designation Of Connection Terminals
1-L1 | 2-T1 | 3-L2 | 4-T2 | 5-L3 | 6-T3
Main Circuit Flexible Terminal Capacity
0.75 to 6 mm²
Main Circuit Maximum Operational Voltage Ue
690 V
Main Circuit Number Of Poles
3
Main Circuit Operating Current Of Magnetic Overload Release
11 In < 1 = 13 In ± 20 % (In = Upper Setting Limit)
Main Circuit Power Dissipation On Pole At Load Within
2 to 2.5 W
Main Circuit Rigid Terminal Capacity
0.75 to 10 mm²
Power Power At 116 Volt V And 1 Phase
2 hp
Power Power At 116 Volt V And 3 Phase
3 hp
Power Power At 200 Volt V And 1 Phase
3 hp
Power Power At 200 Volt V And 3 Phase
5 hp
Power Power At 230 Volt V And 1 Phase
3 hp
Power Power At 230 Volt V And 3 Phase
7.5 hp
Power Power At 460 Volt V And 1 Phase
7.5 hp
Power Power At 460 Volt V And 3 Phase
15 hp
Power Power At 575 Volt V And 1 Phase
10 hp
Power Power At 575 Volt V And 3 Phase
20 hp
