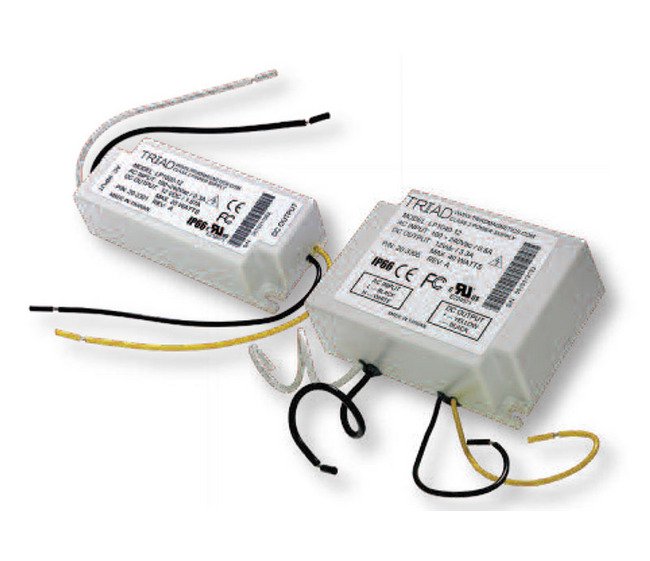

The TLD1020/40 Series offers high-quality 20-40 Watt Single Output Encapsulated Switching Power Supplies with Power Factor Correction (PFC), ideal for both indoor and outdoor IP66/NEMA 4 applications. Featuring constant voltage models with an adjustable fixed output range of 12V and 1.66A current, this power supply ensures efficiency at 84% with overcurrent and overvoltage protection. With compact dimensions and convection cooling, this power supply guarantees reliable performance in diverse environmental conditions.
Product Specifications
Connector Types Input Leads
5 in
Connector Types Input Wire
18 AWG
Connector Types Output Leads
5 in
Connector Types Output Wire
18 AWG
Emc Safety Specifications Class B Safety Approval
CE Mark (LVD) | UL/cUL 1310 | UL48
Emc Safety Specifications Emc Emissions
Compliant to 47CFR, Part 2, Part 15 and Cispr PUB, 22
Environmental Specifications Cooling
Convection Cooled Operation
Environmental Specifications Humidity
5 to 95 % RH, non-condensing

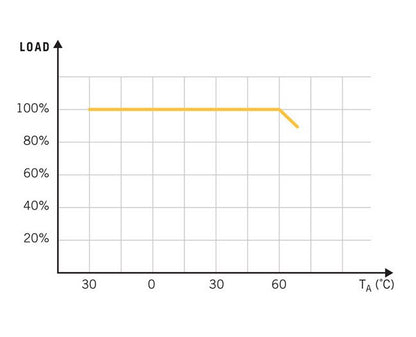

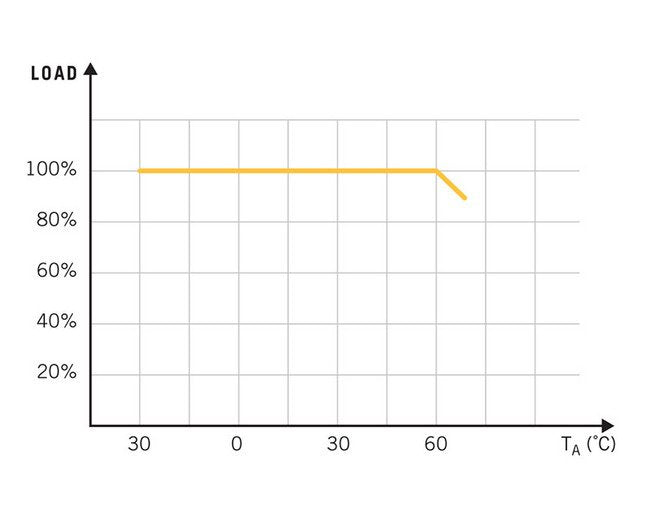

Environmental Specifications Operating Temperature
-30 to +60 Full Load, derate 1%/ºC from 60 to 70 max ºC
Environmental Specifications Storage Temperature
-40 to +85 ºC
Environmental Specifications Vibration
5 to 50 Hz, 2G 1 min/cycle, period of 60 min, each axis.

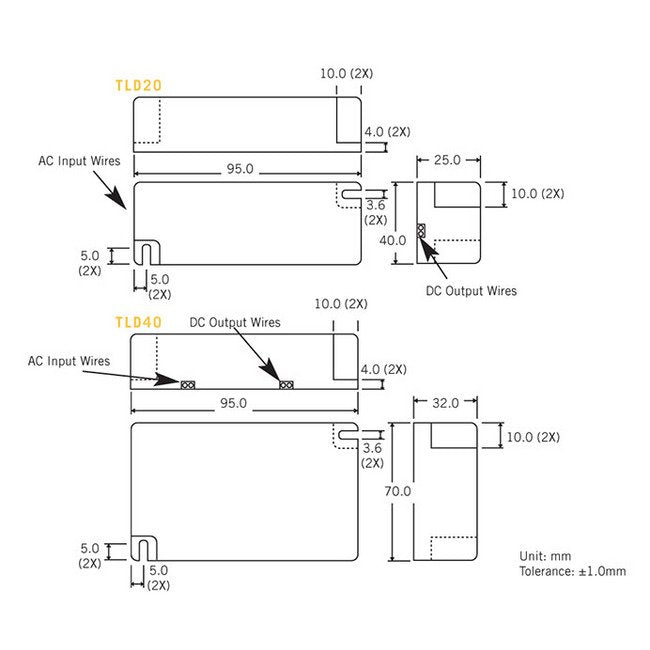

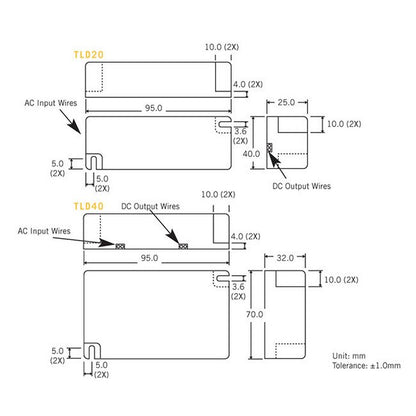

General Specifications Height H
0.97 in | 25 mm
General Specifications Length L
3.74 in | 95 mm
General Specifications Reliability Mtbf
>100k hrs. (Full Load & 25 ºC Operation)
General Specifications Warranty
3 years
General Specifications Weight
120 g
General Specifications Width W
1.57 in | 40 mm
Input Characteristics Input Frequency Range
47 to 63 Hz
Input Characteristics Input Voltage Ac
100 to 304 V
Input Characteristics Maximum Crest Factor Ipk
1.5
Input Characteristics Maximum Input Current At 115230 Vac
0.15 A | 0.3 A
Input Characteristics Maximum Inrush Current At 115 230 Vac Cold
5 A | 10 A
Input Characteristics Power Factor
0.9 at Full Load & 115 VAC
Output Characteristics Adjustable Output Range
Fixed
Output Characteristics Current Accuracy
±1% (when applicable)
Output Characteristics Line Regulation
±3.0 %
Output Characteristics Load Regulation
±3.0 %
Output Characteristics Minimum Hold Up Time At 120 Vac 80 Load
1/2 Cycle
Output Characteristics Over Current Protection Auto Recovery
120 %
Output Characteristics Over Voltage Protection Auto Recovery
120 %
Output Characteristics Ripple And Noise
±5 %
Output Characteristics Set Point Accuracy
±5 %
Specifications Current
1.66 A
Specifications Efficiency
84 %
Specifications Type
Constant Voltage Models
Specifications Voltage
12 V
