20-40W Single Output Switching Power Supply - TLD1020/40
20-40W Single Output Switching Power Supply - TLD1020/40
SKU:POW-a0d5f8
Reliable 20-40W single output switching power supply for indoor & outdoor use, PFC, high efficiency, adjustable output, over current/voltage protection. Compliant with EMC & safety standards.
Regular price
$44.99
Regular price
Sale price
$44.99
Unit price
per
Initiate Order
20-40W Single Output Switching Power Supply - TLD1020/40
$44.99
Quantity: 1
Claim Your Seller Account
20-40W Single Output Switching Power Supply - TLD1020/40
$44.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

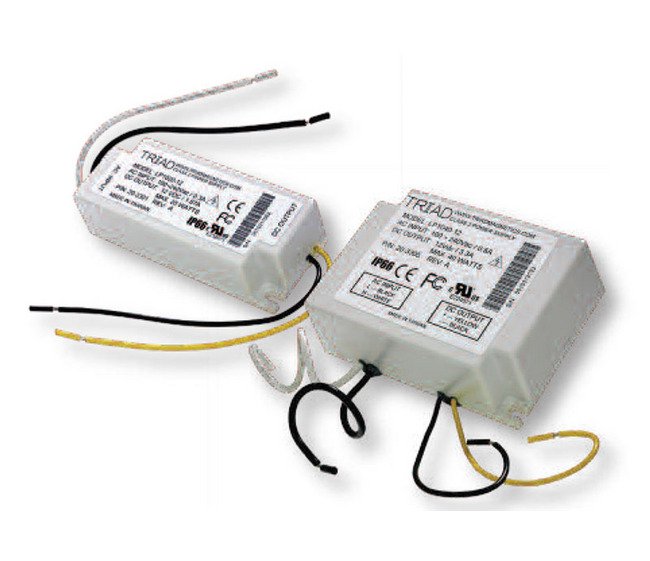

The TLD1020/40 Series offers reliable 20-40 Watt single output switching power supplies suitable for indoor & outdoor IP66/NEMA 4 applications. Featuring PFC, constant voltage models, and high efficiency at 84%. With input voltage range of 100 to 304V AC, adjustable output range, over current and over voltage protection, and compliant with EMC emissions and safety standards including CE Mark, UL, and CISPR PUB 22.
Product Specifications
Connector Types Input Leads
5 in
Connector Types Input Wire
18 AWG
Connector Types Output Leads
5 in
Connector Types Output Wire
18 AWG
Emc Safety Specifications Class B Safety Approval
CE Mark (LVD) | UL/cUL 1310 | UL48
Emc Safety Specifications Emc Emissions
Compliant to 47CFR, Part 2, Part 15 and Cispr PUB, 22
Environmental Specifications Cooling
Convection Cooled Operation
Environmental Specifications Humidity
5 to 95 % RH, non-condensing
Environmental Specifications Operating Temperature

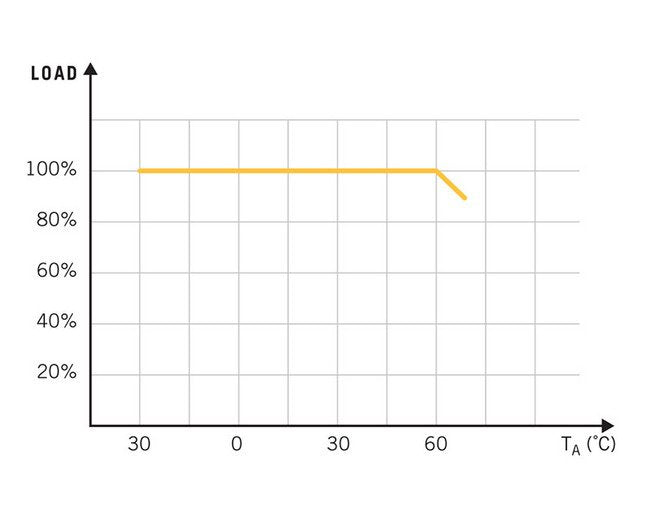

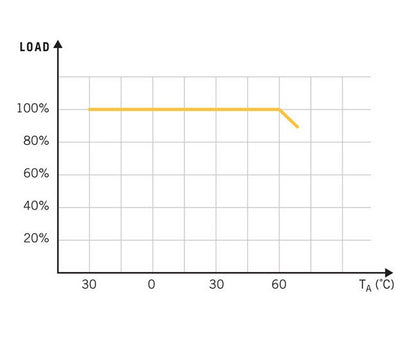

-30 to +60 Full Load, derate 1%/ºC from 60 to 70 max ºC
Environmental Specifications Storage Temperature
-40 to +85 ºC
Environmental Specifications Vibration
5 to 50 Hz, 2G 1 min/cycle, period of 60 min, each axis.

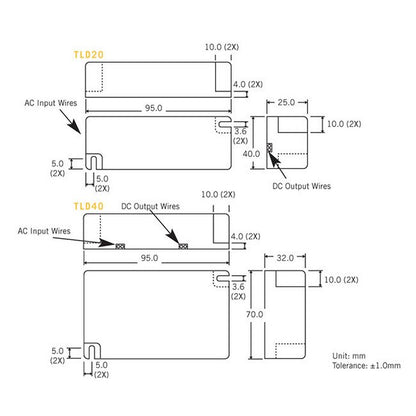

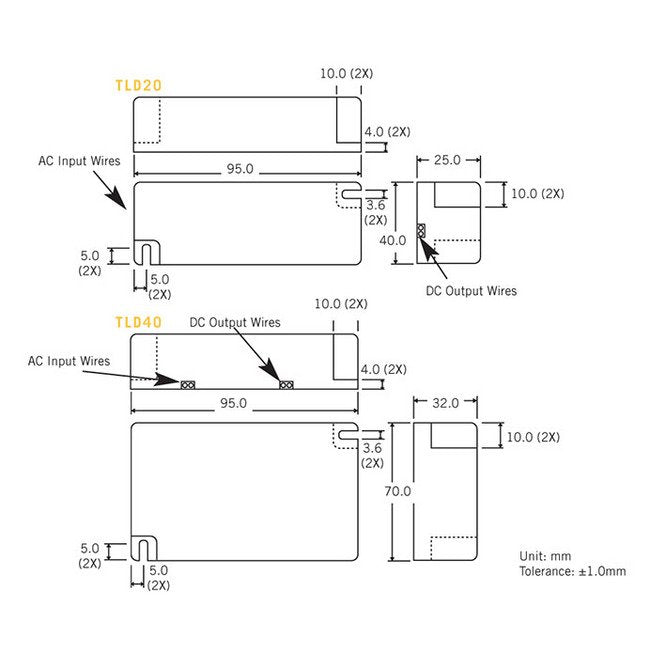

General Specifications Height H
1.260 in | 32 mm
General Specifications Length L
3.74 in | 95 mm
General Specifications Reliability Mtbf
>100k hrs. (Full Load & 25 ºC Operation)
General Specifications Warranty
3 years
General Specifications Weight
120 g
General Specifications Width W
2.76 in | 70 mm
Input Characteristics Input Frequency Range
47 to 63 Hz
Input Characteristics Input Voltage Ac
100 to 304 V
Input Characteristics Maximum Crest Factor Ipk
1.5
Input Characteristics Maximum Input Current At 115230 Vac
0.25 A | 0.5 A
Input Characteristics Maximum Inrush Current At 115 230 Vac Cold
5 A | 10 A
Input Characteristics Power Factor
0.9 at Full Load & 115 VAC
Output Characteristics Adjustable Output Range
Fixed
Output Characteristics Current Accuracy
±1% (when applicable)
Output Characteristics Line Regulation
±3.0 %
Output Characteristics Load Regulation
±3.0 %
Output Characteristics Minimum Hold Up Time At 120 Vac 80 Load
1/2 Cycle
Output Characteristics Over Current Protection Auto Recovery
120 %
Output Characteristics Over Voltage Protection Auto Recovery
120 %
Output Characteristics Ripple And Noise
±5 %
Output Characteristics Set Point Accuracy
±5 %
Specifications Current
1.67 A
Specifications Efficiency
84 %
Specifications Type
Constant Voltage Models
Specifications Voltage
24 V
