20 Inch Tee Type Strainer - Sure Flow Fabricated Tee

Name: 20 Inch Tee Type Strainer - Sure Flow Fabricated Tee
Brand: Sure Flow Equipment, Inc.
SKU: TEM-1706f1
Price: 499.99 USD
Availability: OutOfStock

SKU:TEM-1706f1

Custom 20 Inch Tee Type Strainer, Ensure Pipeline Protection & Equipment Longevity, Complies with ISO 9001:2008 Standards

$499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

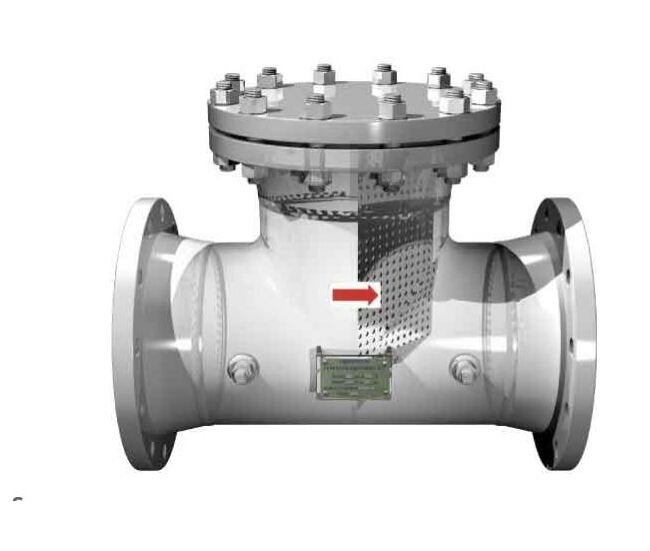

The 20 Inch Sure Flow Fabricated Tee Type Strainer is expertly customized to efficiently remove pipeline debris, safeguarding pumps and valves. Crafted from high-quality carbon or stainless steel, with optional materials available, it adheres to Industry Standards (ISO 9001:2008). Each strainer is tailored to your specifications, ensuring optimal performance and durability in various industrial environments.

Product Specifications

Additional Information Additional Information

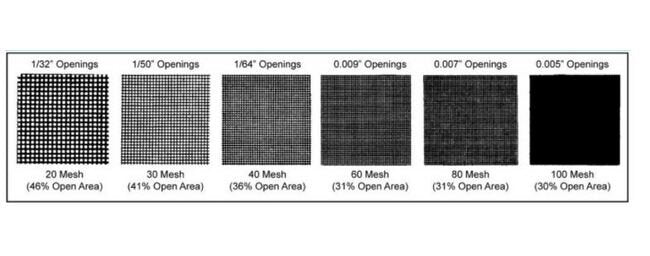

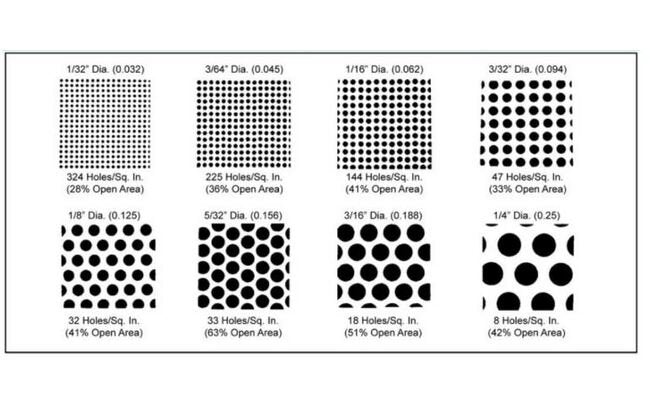

When ordering specify:Type - Straight Flow, Angled Flow, Angled ModifiedNominal Pipe SizeFlange Rating and FacingPressure Rating and FacingCorrosion Conditions, if any (type of materialPerforation (particle retention)

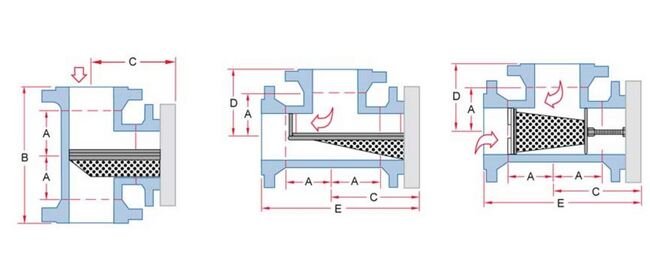

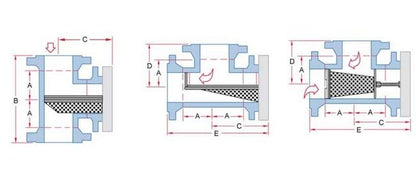

Dimensions Dimension A

15 in

Dimensions Dimension B For American Society Of Mechanical Engine

58 1/2 in

Dimensions Dimension C For American Society Of Mechanical Engine

36 5/8 in

Dimensions Dimension D For American Society Of Mechanical Engine

29 1/4 in

Dimensions Dimension E For American Society Of Mechanical Engine

65 7/8 in

Dimensions Pipe Size

20 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Flanges and bodies are designed to meet Section 1 of American Standard Code for Pressure Piping, ASA B31.1.Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
