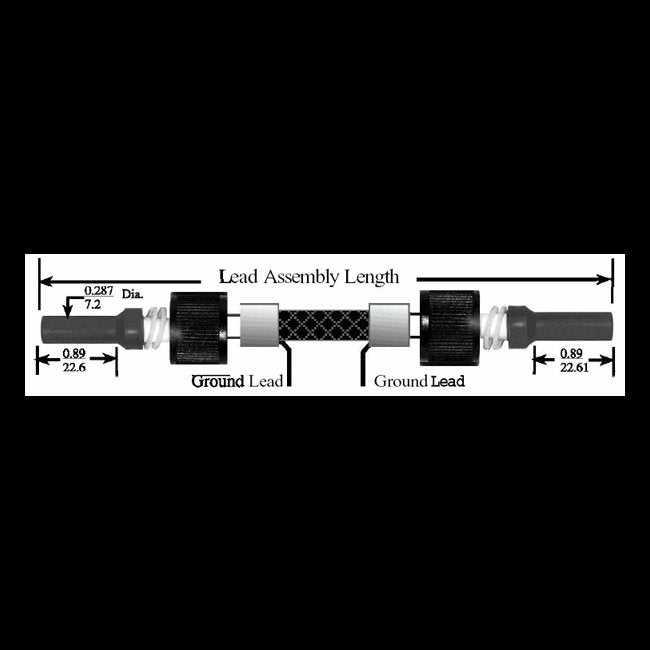

20 kVDC Shielded Double-Ended Plug Cable Assembly

20 kVDC Shielded Double-Ended Plug Cable Assembly

HIG-c5e46c

High-performance 20 kVDC Shielded Double-Ended Plug Cable Assembly for reliable high-voltage applications.

$129.99
$129.99
Sale

Initiate Order

20 kVDC Shielded Double-Ended Plug Cable Assembly

20 kVDC Shielded Double-Ended Plug Cable Assembly

$129.99

Quantity: 1

Claim Your Seller Account

20 kVDC Shielded Double-Ended Plug Cable Assembly

20 kVDC Shielded Double-Ended Plug Cable Assembly

$129.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The 20 kVDC Shielded Double-Ended Plug Cable Assembly is a high-quality, high-voltage cable assembly designed for demanding applications. With an Altitude/Reduced Pressure Rating of 70,000 ft and operating temperature range from -55 to 95 ºC, it ensures reliable performance in extreme conditions. This assembly features a Test Voltage of 25 kVDC and a Current Rating of 10 A, meeting stringent industry standards for safety and durability. The insulator material is plastic, and the contact properties include BeCu with CRES hood and gold finish, ensuring efficient power transmission.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu with CRES hood
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Double-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 A
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Mating Compatibility
All C 720 series receptaclesAll series 720 receptaclesAll LGH LI series receptacles
Specifications Operating Temperature
-55 to 95 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
C 720
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
25 kVDC
Specifications Voltage Rating
20 kVDC
Specifications Wire Insulation
White 0.265 Dia. silicone rubber, #AWG 16
