20 Series Nylon Board Supports
20 Series Nylon Board Supports
SKU:01C-879f2a
Secure circuit boards with ease using 20 Series Nylon Board Supports. Made of UL94V-2 Nylon, these supports offer easy installation, secure locking, and broad temperature range.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
20 Series Nylon Board Supports
$34.99
Quantity: 1
Claim Your Seller Account
20 Series Nylon Board Supports
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 20 Series Nylon Board Supports are perfect for securing circuit boards with precision. Made of UL94V-2 Nylon material, these support posts ensure easy installation by hand and a secure lock while offering easy removal when needed. With a temperature range of -40 to 185F (-40 to 85C), they provide reliable support in various environments. Each pack contains 500 supports, making them ideal for bulk applications. Additionally, the option for UL94V-0 material is available upon request, adding flexibility to meet different requirements.

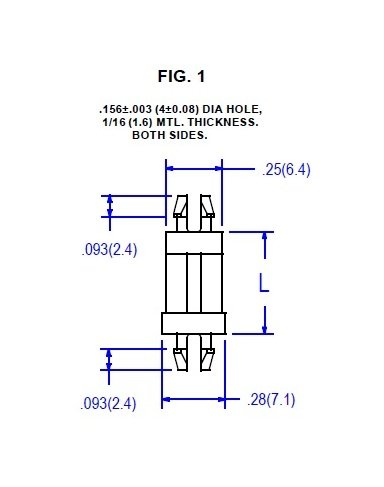

Product Specifications
Specifications Boardchassis Hole Dia
.156 (4.0) inches (mm)
Specifications Dim L
.375 (9.6) inches (mm)
Specifications Material Code
UL94V-2
Specifications Panel Thickness
.063 (1.6) inches (mm)
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
