20 Series Nylon Circuit Board Supports
20 Series Nylon Circuit Board Supports
SKU:01C-89f7ef
Secure and durable 20 Series Nylon Circuit Board Supports for reliable circuit board mounting. RoHS compliant and temperature resistant. Panel Thickness: .063 inches, Hole Diameter: .156 inches.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
20 Series Nylon Circuit Board Supports
$29.99
Quantity: 1
Claim Your Seller Account
20 Series Nylon Circuit Board Supports
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

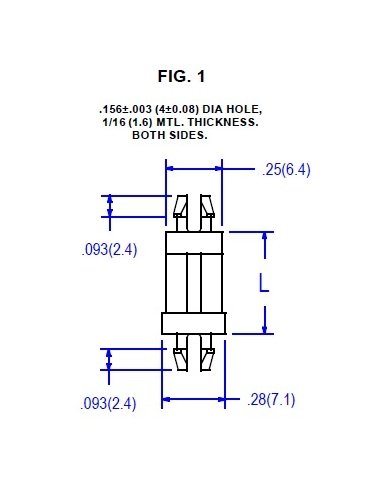

The 20 Series: .156 Board Hole x .156 Chassis Hole Nylon Circuit Board Supports offer easy installation by hand and secure locking with pinchable prong tips. Constructed from Nylon 66 UL94V-2 material (UL94V-0 available), these supports are RoHS compliant and provide a temperature range of -40 to 185F (-40 to 85C). With a panel thickness of .063 inches and a board/chassis hole diameter of .156 inches, these supports ensure reliable and durable mounting solutions for circuit board assemblies.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Boardchassis Hole Dia
.156 (4.0) inches (mm)
Specifications Dim L
.625 (15.9) inches (mm)
Specifications Material Code
UL94V-2
Specifications Panel Thickness
.063 (1.6) inches (mm)
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
