20 Series Nylon Circuit Board Supports
20 Series Nylon Circuit Board Supports
SKU:01C-546d4a
Secure, easy-to-install Nylon Circuit Board Support Posts for reliable circuit board mounting. RoHS compliant and suitable for various environments.
Regular price
$15.99
Regular price
Sale price
$15.99
Unit price
per
Initiate Order
20 Series Nylon Circuit Board Supports
$15.99
Quantity: 1
Claim Your Seller Account
20 Series Nylon Circuit Board Supports
$15.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

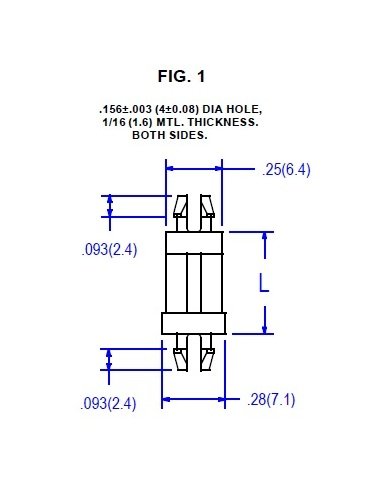

The 20 Series Nylon Circuit Board Supports are designed for easy installation by hand with a secure locking mechanism that allows for effortless removal. Made from Nylon 66 UL94V-2 material (UL94V-0 available), these support posts ensure reliability and durability. With a wide temperature range of -40 to 185F (-40 to 85C), they are suitable for various environments. The supports feature a .156-inch board hole and chassis hole, with a panel thickness of .063 inches. Ideal for circuit board applications, these supports meet ASTM D 4066 and are RoHS compliant.
Product Specifications
Specifications Boardchassis Hole Dia
.156 (4.0) inches (mm)
Specifications Dim L
.437 (11.1) inches (mm)
Specifications Material Code
UL94V-2
Specifications Panel Thickness
.063 (1.6) inches (mm)
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
