20 Series Nylon Circuit Board Supports
20 Series Nylon Circuit Board Supports
SKU:01C-a62aa3
Securely support circuit boards with ease using our Nylon 20 Series Supports. Compliant with RoHS standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
20 Series Nylon Circuit Board Supports
$29.99
Quantity: 1
Claim Your Seller Account
20 Series Nylon Circuit Board Supports
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

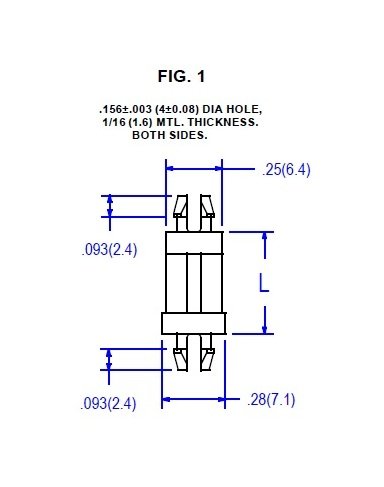

The 20 Series Nylon Circuit Board Supports are designed for easy installation by hand, providing secure locking with the convenience of easy removal. Constructed from Nylon 66 UL94V-2 material (UL94V-0 available), these support posts offer durability and reliability for various applications. With a board/chassis hole diameter of .156 inches and a panel thickness of .063 inches, they are suitable for a range of panel thicknesses. Compliant with RoHS standards and featuring a temperature range of -40 to 185F (-40 to 85C), these supports meet quality and safety requirements for both consumer and institutional buyers.
Product Specifications
Specifications Boardchassis Hole Dia
.156 (4.0) inches (mm)
Specifications Dim L
.937 (23.8) inches (mm)
Specifications Material Code
UL94V-2
Specifications Panel Thickness
.063 (1.6) inches (mm)
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
