20 Series Nylon Circuit Board Supports
20 Series Nylon Circuit Board Supports
SKU:01C-18d235
Secure and durable 20 Series Nylon Circuit Board Supports for .156 Board Hole x .156 Chassis Hole configurations. ASTM D 4066 and RoHS compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
20 Series Nylon Circuit Board Supports
$29.99
Quantity: 1
Claim Your Seller Account
20 Series Nylon Circuit Board Supports
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

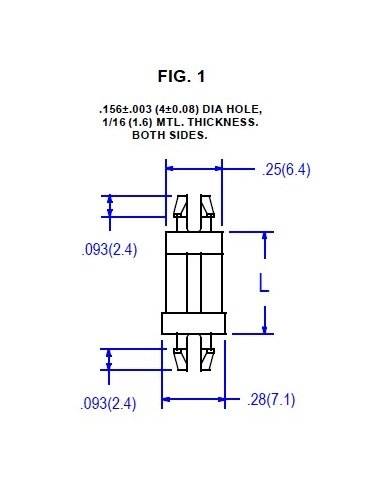

The 20 Series Nylon Circuit Board Supports are designed for easy hand installation, providing secure locking for .156 Board Hole x .156 Chassis Hole configurations. Made of Nylon 66 UL94V-2 material, these supports offer a temperature range of -40 to 185F, ensuring durability and reliability. With ASTM D 4066 and RoHS compliance, these supports meet stringent industry standards, making them ideal for various institutional and government procurement needs.
Product Specifications
Specifications Boardchassis Hole Dia
.156 (4.0) inches (mm)
Specifications Dim L
1.00 (25.4) inches (mm)
Specifications Material Code
UL94V-2
Specifications Panel Thickness
.063 (1.6) inches (mm)
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
