20 Series Nylon Support Post, .156 Board Hole x .156 Chassis Hole

Name: 20 Series Nylon Support Post, .156 Board Hole x .156 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-613b79
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-613b79

Securely mount circuit boards with the 20 Series Nylon Support Post. Easy installation, precise dimensions, and ASTM D 4066, RoHS compliant.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 20 Series Nylon Support Post is a versatile solution for securely mounting circuit boards. Made of UL94V-2 Nylon 66, this support post ensures easy installation by hand with a secure locking mechanism. The .156 board hole and .156 chassis hole diameters cater to precise requirements, while the panel thickness of .063 inches guarantees a stable fit. With ASTM D 4066 and RoHS compliance, this support post is ideal for applications requiring a temperature range of -40 to 185F. Available in natural color, packaged conveniently in sets of 500.

Product Specifications

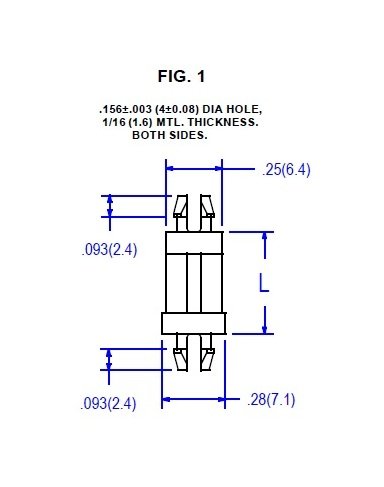

Specifications Boardchassis Hole Dia

.156 (4.0) inches (mm)

Specifications Dim L

.500 (12.7) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)

Specifications Remarks Panel Thickness

Panel thickness is for both ends.
