20 Series Nylon Support Post - .156 Board Hole x .156 Chassis Hole

Name: 20 Series Nylon Support Post - .156 Board Hole x .156 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-c8d538
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-c8d538

Versatile 20 Series Nylon Support Post for easy installation, secure locking, and durability. Complies with ASTM, RoHS standards.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

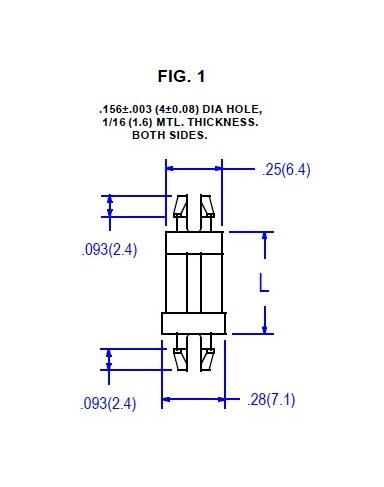

The 20 Series Nylon Support Post is designed for easy hand installation, ensuring secure locking while remaining simple to remove by pinching the prong tips. Made from Nylon 66 UL94V-2 material, this support post offers high durability and reliability. With a board/chassis hole diameter of .156 inches (4.0 mm) and a panel thickness of .063 inches (1.6 mm), it provides a versatile solution for circuit board supports. This product complies with ASTM D 4066, RoHS standards, and has a temperature range of -40 to 185F (-40 to 85C), making it an ideal choice for various applications.

Product Specifications

Specifications Boardchassis Hole Dia

.156 (4.0) inches (mm)

Specifications Dim L

.312 (7.92) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)

Specifications Remarks Panel Thickness

Panel thickness is for both ends.
