20 Series Nylon Support Post for Circuit Boards - Pack of 500

Name: 20 Series Nylon Support Post for Circuit Boards - Pack of 500
Brand: All Electronics Hardware
SKU: 01C-e43d67
Price: 39.99 USD
Availability: OutOfStock

SKU:01C-e43d67

Secure and durable 20 Series Nylon Support Post for circuit boards. Pack of 500, RoHS compliant.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

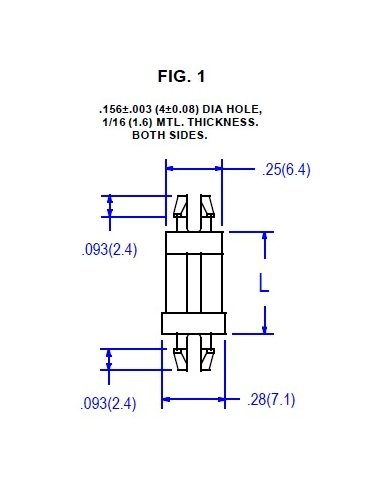

The 20 Series Nylon Support Post is a reliable solution for securing circuit boards with its .156 board hole x .156 chassis hole design. Made of Nylon 66 UL94V-2 material, this support post ensures secure installation with easy removal when needed. It offers a temperature range of -40 to 185F (-40 to 85C), meeting RoHS compliance standards. With precise dimensions and a natural color finish, this pack of 500 support posts is ideal for industrial applications requiring durability and ease of use.

Product Specifications

Specifications Boardchassis Hole Dia

.156 (4.0) inches (mm)

Specifications Dim L

.750 (19.1) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)

Specifications Remarks Panel Thickness

Panel thickness is for both ends.
