20 Series Nylon Support Posts - .156 Board Hole x .156 Chassis Hole

Name: 20 Series Nylon Support Posts - .156 Board Hole x .156 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-d07d6a
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-d07d6a

Secure and durable support posts for circuit boards, ASTM & RoHS compliant, temperature resistant from -40 to 185°F.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 20 Series Nylon Support Posts with .156 Board Hole x .156 Chassis Hole offer easy manual installation and secure locking, ensuring stability for circuit board supports. Crafted from UL94V-2 Nylon material (UL94V-0 variant available), these posts guarantee reliability and safety. With ASTM D 4066 and RoHS compliance, they withstand temperatures from -40 to 185°F (-40 to 85°C) and are RoHS compliant.

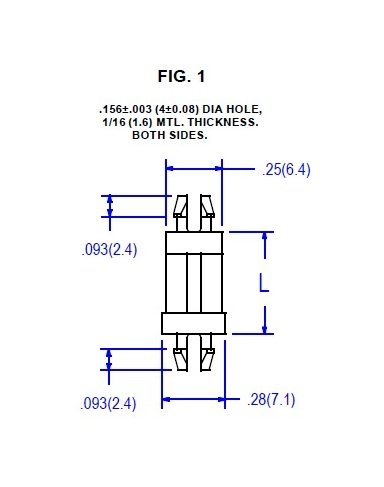

Product Specifications

Specifications Boardchassis Hole Dia

.156 (4.0) inches (mm)

Specifications Dim L

1.06 (26.9) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)

Specifications Remarks Panel Thickness

Panel thickness is for both ends.
