20 Series Nylon Support Posts - Pack of 500
20 Series Nylon Support Posts - Pack of 500
SKU:01C-9614a8
Secure and versatile nylon support posts for circuit boards and chassis holes. Pack of 500.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
20 Series Nylon Support Posts - Pack of 500
$29.99
Quantity: 1
Claim Your Seller Account
20 Series Nylon Support Posts - Pack of 500
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

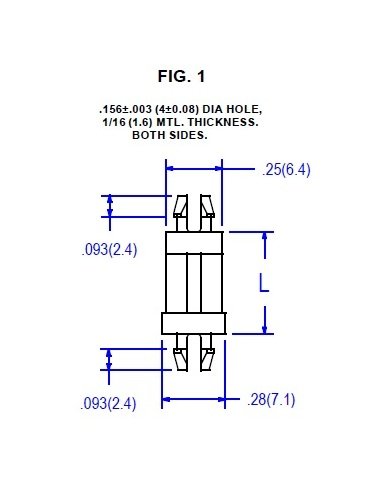

The 20 Series Nylon Support Posts are engineered for secure yet easily removable installation on circuit boards. Made from Nylon 66 UL94V-2 material, these support posts demonstrate exceptional durability and fire resistance, with an option for UL94V-0 compliance. Each post measures 1.125 inches in length and features a.156-inch diameter hole for both board and chassis mounting. With a RoHS-compliant design and a temperature range of -40 to 185F, these support posts offer reliability in diverse environments.
Product Specifications
Specifications Boardchassis Hole Dia
.156 (4.0) inches (mm)
Specifications Dim L
1.125 (28.6) inches (mm)
Specifications Material Code
UL94V-2
Specifications Panel Thickness
.063 (1.6) inches (mm)
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
