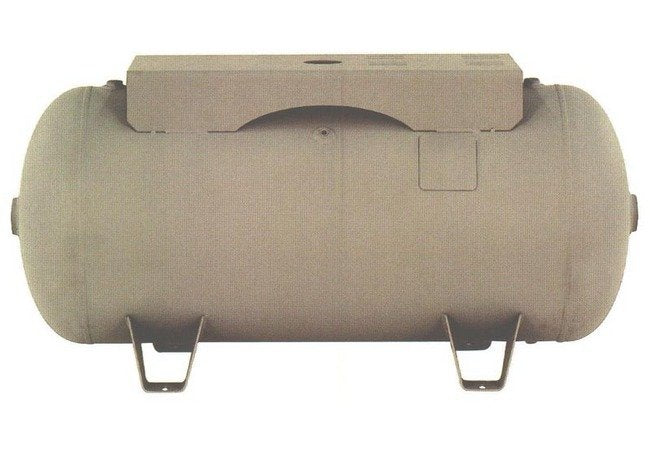

200-Gallon Horizontal Air Receiver Tank with Legs & Top Plate
200-Gallon Horizontal Air Receiver Tank with Legs & Top Plate
SKU:REC-c45611
Reliable 200-Gallon Horizontal Air Receiver Tank for industrial compressed air storage at 200 psi. Durable construction with legs and top plate.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
200-Gallon Horizontal Air Receiver Tank with Legs & Top Plate
$899.99
Quantity: 1
Claim Your Seller Account
200-Gallon Horizontal Air Receiver Tank with Legs & Top Plate
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

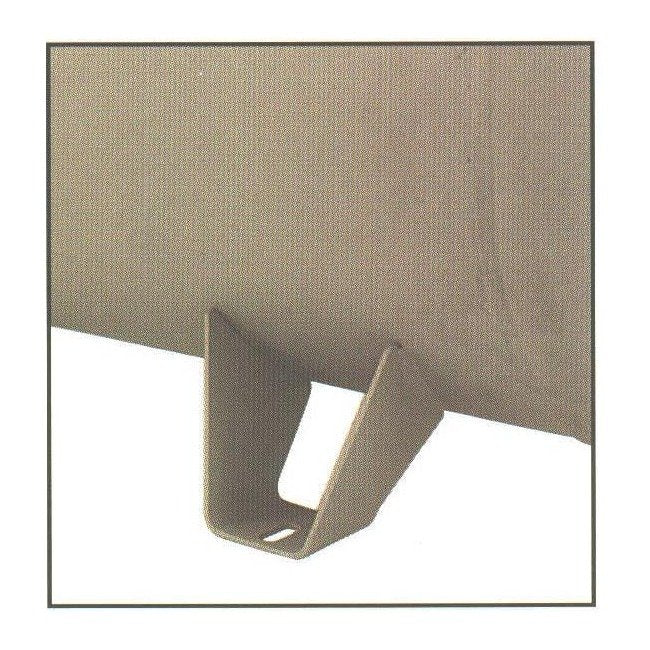

The 200-Gallon Horizontal Air Receiver Tank is designed to store compressed air at a maximum pressure of 200 psi, ideal for industrial applications requiring reliable air storage. With a nominal capacity of 200 gallons (26.74 ft³) and sturdy construction featuring legs and a top plate, this tank ensures durability and stability. Measuring 35.69 inches in height and 30.00 inches in outer diameter, it offers ample storage space while occupying minimal floor area. The tank's 2-inch NPT openings and saddles feet allow convenient installation and maintenance, catering to the stringent needs of institutional and government buyers.
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Specifications Cross Reference
A10036
Specifications Dimension A
11.63 inches
Specifications Dimension B
24.38 inches
Specifications Dimension C
17.00 inches
Specifications Dimension D
38.00 inches
Specifications Dimension E
23.50 inches
Specifications Dimension F
3.00 inches
Specifications Feet
Saddles
Specifications Ht
35.69 inches
Specifications Mawp
200 psi
Specifications Nominal Capacity
200 gal | 26.74 ft³
Specifications Npt Opening G
2 inches
Specifications Npt Opening H
2 inches
Specifications Npt Opening J
1 inches
Specifications Od
30.00 inches
Specifications Size
13/16 x 1 1/2 inches
Specifications Tl
72.00 inches
Specifications Top Plate
0.25 x 19 x 48
Specifications Tw
632
