200 Gallon Vertical Air Receiver Tank, ASME-Certified, 30" Diameter
200 Gallon Vertical Air Receiver Tank, ASME-Certified, 30" Diameter
SKU:VER-cd161d
Reliable 200-gal vertical air receiver tank with ASME certification, 200 psi, NPT threaded openings, and durable grey oxide finish.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
200 Gallon Vertical Air Receiver Tank, ASME-Certified, 30" Diameter
$899.99
Quantity: 1
Claim Your Seller Account
200 Gallon Vertical Air Receiver Tank, ASME-Certified, 30" Diameter
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Meet your industrial air storage needs with this 200-gallon vertical air receiver tank designed to ASME standards. With a high-pressure rating of 200 psi, this tank offers reliability and safety. The NPT threaded openings and grey oxide primer finish ensure durability and corrosion resistance. Ideal for applications requiring a standard design temperature of 450 ºF. Larger tank sizes available. Contact us for pricing on higher pressure models.

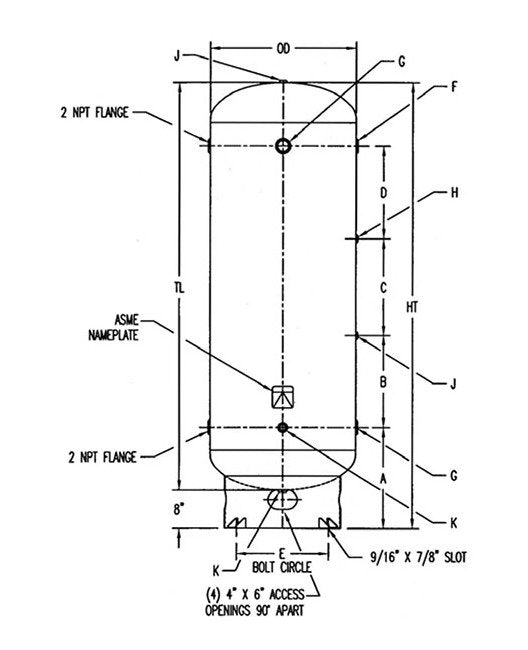

Product Specifications
Dimensions Dimension A
15 in
Dimensions Dimension B
16 in
Dimensions Dimension C
15 in
Dimensions Dimension D
13.00 in
Dimensions Dimension E
8 in
Dimensions Dimension F
26 in
Note 0
Call for pricing on higher pressure. Larger receivers available to 3800 gallons.
Openings Opening G
2 in
Openings Opening H
1/4 in
Openings Opening J
1/2 in
Openings Opening K
1 in
Openings Opening L
1 in
Openings Opening M
1/2 in
Openings Opening N
2 in
Specifications Design Pressure
200 psi
Specifications Diameter
30 in
Specifications Height
80 in
Specifications Industry Standards
ASME
Specifications Length
72 in
Specifications Standard Design Temperature
450 ºF
Specifications Volume
200 gal
