2000 lbs. Model 200 BPM Base Plate Mounted Jib Cranes

Name: 2000 lbs. Model 200 BPM Base Plate Mounted Jib Cranes
Brand: Stanspec div. of American Crane & Hoist
SKU: REL-76895e
Price: 2499.99 USD
Availability: OutOfStock

SKU:REL-76895e

Efficient 2000 lbs. capacity crane for safe, precise material handling in standard duty applications.

$2,499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

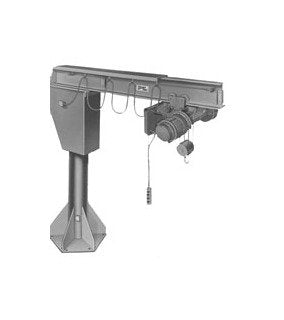

The Model 200 BPM Base Plate Mounted Jib Crane is engineered for standard duty applications with a capacity of 2000 lbs. It ensures safe hoist travel and precision load handling, making it ideal for heavy-duty use in material loading, handling, and transferring. With a sturdy construction and specific design limits, this crane guarantees efficiency and reliability. Suitable for both hand chain and electric hoists, it meets stringent industrial standards for quality and safety.

Product Specifications

Electrification Electrification

Power Supply Extra Features

Anchor Bolts | Template

Specifications Base Plate Size D

42 inches

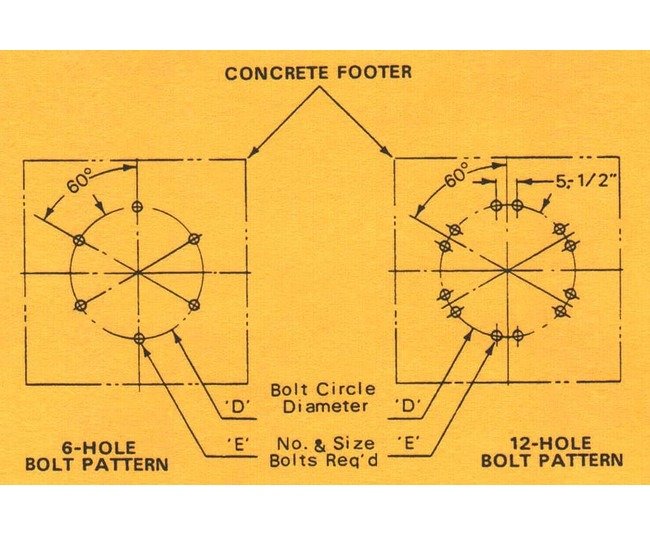

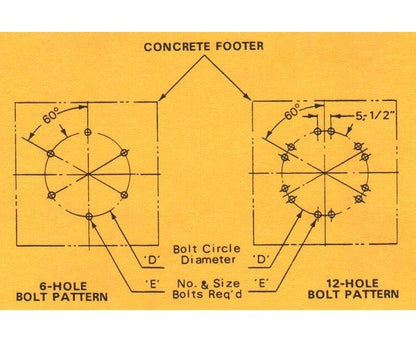

Specifications Bolt Circle Diameter D

35 inches

Specifications Bolt Diameter E

7/8 inches

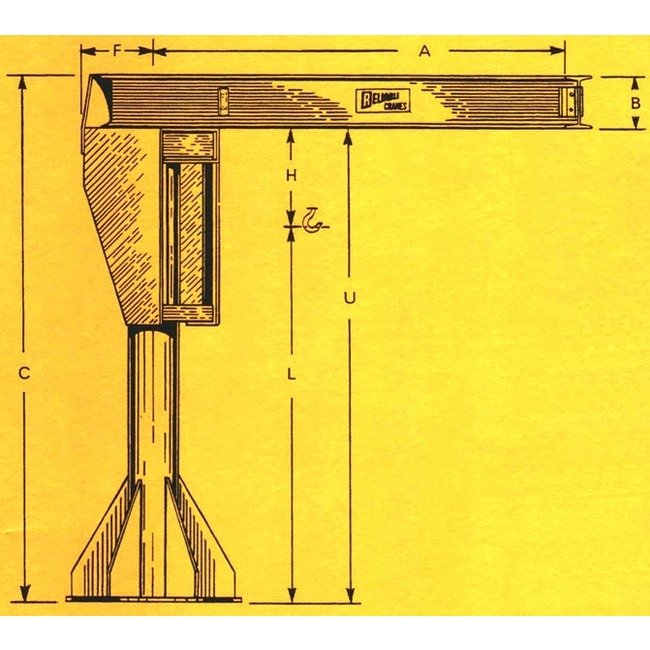

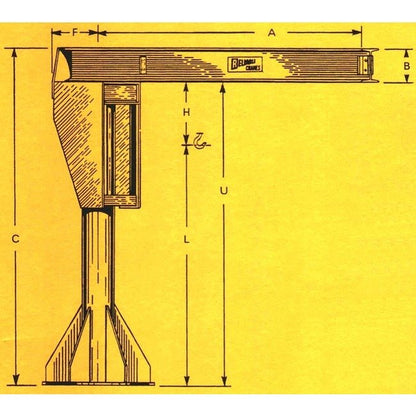

Specifications Boom Size B

12 inches

Specifications Capacity

2000 lbs.

Specifications Hoist Headroom

Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use

Specifications Max Height C

11'-1"

Specifications Model

BPM | CIM | TRW | CDC | TDC | CBM | TRM

Specifications Mounting

BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted

Specifications No Of Bolts

Specifications Span A

16'-0"

Specifications Under Boom U

10'-0"

Specifications Usage

Heavy - Heavy Duty/High Cycle | Standard - General Purpose

Specifications Weight

1780 lbs.
