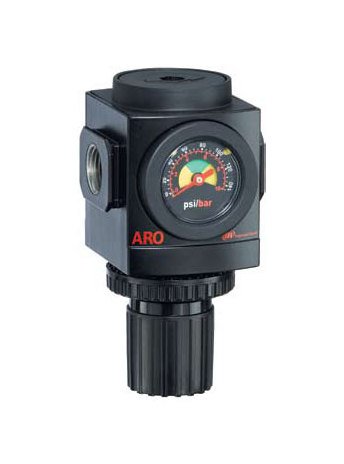

2000 Series Regulator Knob Control
2000 Series Regulator Knob Control
SKU:REG-1aec4f
High-quality 2000 Series Regulator Knob Control for water, steam, and air applications. Durable construction, precise control, and reliable performance.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
2000 Series Regulator Knob Control
$89.99
Quantity: 1
Claim Your Seller Account
2000 Series Regulator Knob Control
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 2000 Series Regulator Knob Control is a high-quality regulator with a 3/4 in NPT Port Size and a Pressure Range of 0 to 140 psi, making it ideal for water, steam, and air applications. Constructed with durable materials like Aluminum for the Regulator Body and Nitrile + Nylon for the Diaphragm, this regulator ensures reliable performance in various settings. Additionally, it features a Flush-mount gauge, Steel Regulator Springs, and Acetal Regulator Knob for precise control and adjustment. With a Temperature Range of 23 to 140 °F and a Flow Capacity of 210 scfm, this regulator is a dependable choice for both consumer and institutional buyers.
Product Specifications
Specifications Accessories
104392-3, 3/8" NPT Lock-Out Valve | 104392-4, 1/2" NPT Lock-Out Valve | 104396, Modular Clamp | 104398-3, 3/8" NPT Pipe Adapter | 104398-4, 1/2" NPT Pipe Adapter | 104401, T-Type Wall Mount | 104405, L-Type Wall Mount | 104409, C-Type Wall Mount | 104413-3-3, 3/8" x 3/8" Manifold Block | 104413-4-3, 1/2" x 3/8" Manifold Block | 104415, Pressure Switch | 104418, Panel Nut | 104469, Gauge Port Block | 104479-3, 3/8" Check Valve | 104479-4, 1/2" Check Valve
Specifications Diaphragm
Nitrile + Nylon
Specifications Flow Capacity
210 scfm
Specifications Gauge
Flush-mount gauge
Specifications Gauge Cover
Nylon + Polycarbonate
Specifications Gauge Port
1/8 in
Specifications Maximum Inlet Pressure
250 psi
Specifications Npt Port Size
3/4 in
Specifications O Rings
Nitrile
Specifications Pressure Range
0 to 140 psi
Specifications Regulator Body
Aluminum
Specifications Regulator Knob
Acetal
Specifications Regulator Springs
Steel
Specifications Regulator Valve
Nitrile + Nylon
Specifications Replacement Parts
104327, Regulator Service Kit (Relieving) | 104328, Regulator Service Kit (Non-Relieving) | 104329, Tamper Kit | 104330, 0 - 60 psi Spring | 104331, 0 - 140 psi Spring | 104332, 10 - 200 psi Spring | 104334, 0 - 140 psi Gauge Flush Mount
Specifications Temperature Range
23 to 140 ºF
