2000 Series Regulator Non-Relieving Standard Knob Control
2000 Series Regulator Non-Relieving Standard Knob Control
SKU:REG-b1eb6a
Premium 2000 Series Regulator for water, steam & air. Offers precise 0-140 psi pressure control. Meets Federal/DoD standards.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
2000 Series Regulator Non-Relieving Standard Knob Control
$129.99
Quantity: 1
Claim Your Seller Account
2000 Series Regulator Non-Relieving Standard Knob Control
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

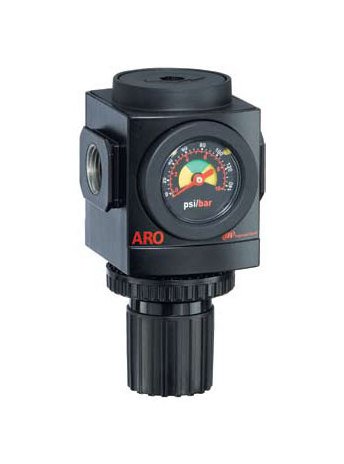

The 2000 Series Regulator Non-Relieving Standard Knob Control is a high-quality regulator suitable for water, steam, and air applications. With a robust aluminum body, nitrile and nylon diaphragm, and steel regulator springs, it offers precise pressure control ranging from 0 to 140 psi. The flush-mount gauge, acetal regulator knob, and durable construction make it a reliable choice for industrial settings. This regulator also meets Federal/DoD procurement standards, GSA requirements, and FAR compliance factors, ensuring top-notch quality for institutional buyers.
Product Specifications
Specifications Accessories
104392-3, 3/8" NPT Lock-Out Valve | 104392-4, 1/2" NPT Lock-Out Valve | 104396, Modular Clamp | 104398-3, 3/8" NPT Pipe Adapter | 104398-4, 1/2" NPT Pipe Adapter | 104401, T-Type Wall Mount | 104405, L-Type Wall Mount | 104409, C-Type Wall Mount | 104413-3-3, 3/8" x 3/8" Manifold Block | 104413-4-3, 1/2" x 3/8" Manifold Block | 104415, Pressure Switch | 104418, Panel Nut | 104469, Gauge Port Block | 104479-3, 3/8" Check Valve | 104479-4, 1/2" Check Valve
Specifications Diaphragm
Nitrile + Nylon

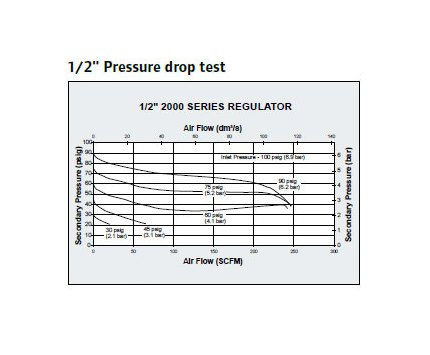

Specifications Flow Capacity
210 scfm
Specifications Gauge
Flush-mount gauge
Specifications Gauge Cover
Nylon + Polycarbonate
Specifications Gauge Port
1/8 in
Specifications Maximum Inlet Pressure
250 psi
Specifications Npt Port Size
3/4 in
Specifications O Rings
Nitrile
Specifications Pressure Range
0 to 140 psi
Specifications Regulator Body
Aluminum
Specifications Regulator Knob
Acetal
Specifications Regulator Springs
Steel
Specifications Regulator Valve
Nitrile + Nylon
Specifications Replacement Parts
104327, Regulator Service Kit (Relieving) | 104328, Regulator Service Kit (Non-Relieving) | 104329, Tamper Kit | 104330, 0 - 60 psi Spring | 104331, 0 - 140 psi Spring | 104332, 10 - 200 psi Spring | 104334, 0 - 140 psi Gauge Flush Mount
Specifications Temperature Range
23 to 140 ºF
