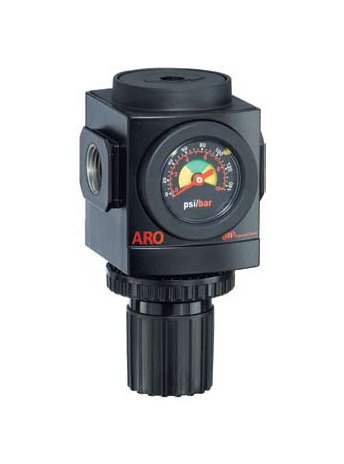

2000 Series Regulator - Relieving Knob Control
2000 Series Regulator - Relieving Knob Control
SKU:REG-9bb7b3
High-performance regulator for water, steam, air. Aluminum body, 0-30 psi, durable components. Replacement parts available.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
2000 Series Regulator - Relieving Knob Control
$79.99
Quantity: 1
Claim Your Seller Account
2000 Series Regulator - Relieving Knob Control
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 2000 Series Regulator with Relieving Knob Control is a high-performance solution for precise pressure regulation in water, steam, and air systems. Featuring a durable aluminum body, Nitrile + Nylon diaphragm, and Acetal regulator knob, this regulator ensures reliable operation within a pressure range of 0 to 30 psi. With a maximum inlet pressure of 250 psi and a flow capacity of 179 scfm, it offers efficient and consistent performance. Replacement parts and accessories are readily available to support maintenance and customization, making it a versatile choice for institutional and consumer applications.
Product Specifications
Specifications Accessories
104392-3, 3/8" NPT Lock-Out Valve | 104392-4, 1/2" NPT Lock-Out Valve | 104396, Modular Clamp | 104398-3, 3/8" NPT Pipe Adapter | 104398-4, 1/2" NPT Pipe Adapter | 104401, T-Type Wall Mount | 104405, L-Type Wall Mount | 104409, C-Type Wall Mount | 104413-3-3, 3/8" x 3/8" Manifold Block | 104413-4-3, 1/2" x 3/8" Manifold Block | 104415, Pressure Switch | 104418, Panel Nut | 104469, Gauge Port Block | 104479-3, 3/8" Check Valve | 104479-4, 1/2" Check Valve
Specifications Diaphragm
Nitrile + Nylon
Specifications Flow Capacity
179 scfm
Specifications Gauge
No gauge
Specifications Gauge Cover
Nylon + Polycarbonate
Specifications Gauge Port
1/8 in
Specifications Maximum Inlet Pressure
250 psi
Specifications Npt Port Size
3/8 in
Specifications O Rings
Nitrile
Specifications Pressure Range
0 to 30 psi
Specifications Regulator Body
Aluminum
Specifications Regulator Knob
Acetal
Specifications Regulator Springs
Steel
Specifications Regulator Valve
Nitrile + Nylon
Specifications Replacement Parts
104327, Regulator Service Kit (Relieving) | 104328, Regulator Service Kit (Non-Relieving) | 104329, Tamper Kit | 104330, 0 - 60 psi Spring | 104331, 0 - 140 psi Spring | 104332, 10 - 200 psi Spring | 104334, 0 - 140 psi Gauge Flush Mount
Specifications Temperature Range
23 to 140 ºF
