2000 Series Regulator - Standard Knob Control
2000 Series Regulator - Standard Knob Control
SKU:REG-9d0a51
Premium regulator for water, steam, & air. 1/2 in NPT Port, 0-140 psi. Durable Aluminum body, precise pressure control. Ideal for various applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
2000 Series Regulator - Standard Knob Control
$129.99
Quantity: 1
Claim Your Seller Account
2000 Series Regulator - Standard Knob Control
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

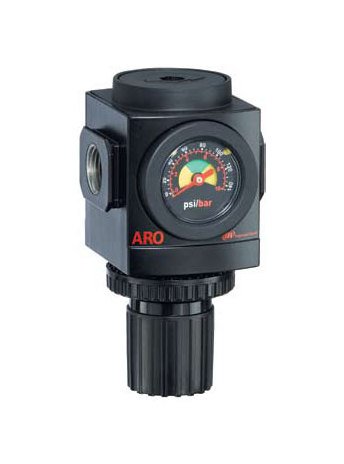

The 2000 Series Regulator with Standard Knob Control is a high-quality regulator suitable for water, steam, and air applications. With a NPT Port Size of 1/2 in, a Pressure Range from 0 to 140 psi, and a durable Aluminum Regulator Body, this product ensures precise pressure control and reliability. The inclusion of Nitrile + Nylon Diaphragm and Regulator Valve, along with Steel Regulator Springs, guarantees long-lasting performance. Designed for ease of use, compliance with industry standards, and the flexibility to accommodate various pressure needs, this regulator is ideal for both consumer and institutional buyers.
Product Specifications
Specifications Accessories
104392-3, 3/8" NPT Lock-Out Valve | 104392-4, 1/2" NPT Lock-Out Valve | 104396, Modular Clamp | 104398-3, 3/8" NPT Pipe Adapter | 104398-4, 1/2" NPT Pipe Adapter | 104401, T-Type Wall Mount | 104405, L-Type Wall Mount | 104409, C-Type Wall Mount | 104413-3-3, 3/8" x 3/8" Manifold Block | 104413-4-3, 1/2" x 3/8" Manifold Block | 104415, Pressure Switch | 104418, Panel Nut | 104469, Gauge Port Block | 104479-3, 3/8" Check Valve | 104479-4, 1/2" Check Valve
Specifications Diaphragm
Nitrile + Nylon

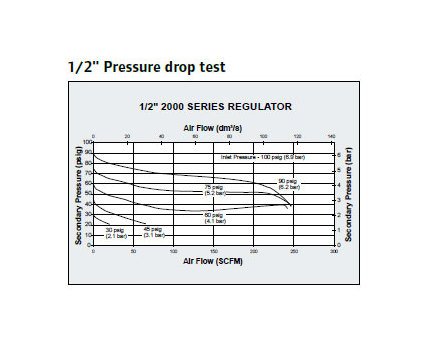

Specifications Flow Capacity
215 scfm
Specifications Gauge
No gauge
Specifications Gauge Cover
Nylon + Polycarbonate
Specifications Gauge Port
1/8 in
Specifications Maximum Inlet Pressure
250 psi
Specifications Npt Port Size
1/2 in
Specifications O Rings
Nitrile
Specifications Pressure Range
0 to 140 psi
Specifications Regulator Body
Aluminum
Specifications Regulator Knob
Acetal
Specifications Regulator Springs
Steel
Specifications Regulator Valve
Nitrile + Nylon
Specifications Replacement Parts
104327, Regulator Service Kit (Relieving) | 104328, Regulator Service Kit (Non-Relieving) | 104329, Tamper Kit | 104330, 0 - 60 psi Spring | 104331, 0 - 140 psi Spring | 104332, 10 - 200 psi Spring | 104334, 0 - 140 psi Gauge Flush Mount
Specifications Temperature Range
23 to 140 ºF
