2000 Series Regulator with Relieving Knob Control
2000 Series Regulator with Relieving Knob Control
SKU:REG-3c5008
High-performance regulator with relieving knob control for precise pressure regulation in water, steam, and air systems.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
2000 Series Regulator with Relieving Knob Control
$79.99
Quantity: 1
Claim Your Seller Account
2000 Series Regulator with Relieving Knob Control
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

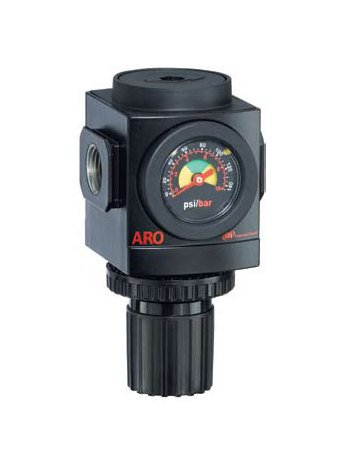

The 2000 Series Regulator with Relieving Knob Control is a high-performance solution designed for precise pressure regulation in water, steam, and air systems. With a durable aluminum body, Nitrile + Nylon diaphragm, and Steel springs, this regulator ensures reliable operation in demanding environments. The Acetal regulator knob allows for easy pressure adjustments while the extensive range of replacement parts and accessories make maintenance and customization straightforward. Featuring a pressure range of 10 to 200 psi and a flow capacity of 215 scfm, this regulator is ideal for both consumer and institutional buyers seeking efficiency and durability.
Product Specifications
Specifications Accessories
104392-3, 3/8" NPT Lock-Out Valve | 104392-4, 1/2" NPT Lock-Out Valve | 104396, Modular Clamp | 104398-3, 3/8" NPT Pipe Adapter | 104398-4, 1/2" NPT Pipe Adapter | 104401, T-Type Wall Mount | 104405, L-Type Wall Mount | 104409, C-Type Wall Mount | 104413-3-3, 3/8" x 3/8" Manifold Block | 104413-4-3, 1/2" x 3/8" Manifold Block | 104415, Pressure Switch | 104418, Panel Nut | 104469, Gauge Port Block | 104479-3, 3/8" Check Valve | 104479-4, 1/2" Check Valve
Specifications Diaphragm
Nitrile + Nylon

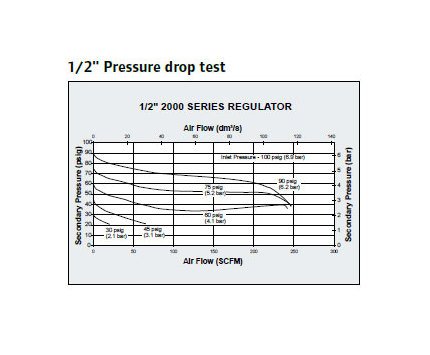

Specifications Flow Capacity
215 scfm
Specifications Gauge
No gauge
Specifications Gauge Cover
Nylon + Polycarbonate
Specifications Gauge Port
1/8 in
Specifications Maximum Inlet Pressure
250 psi
Specifications Npt Port Size
1/2 in
Specifications O Rings
Nitrile
Specifications Pressure Range
10 to 200 psi
Specifications Regulator Body
Aluminum
Specifications Regulator Knob
Acetal
Specifications Regulator Springs
Steel
Specifications Regulator Valve
Nitrile + Nylon
Specifications Replacement Parts
104327, Regulator Service Kit (Relieving) | 104328, Regulator Service Kit (Non-Relieving) | 104329, Tamper Kit | 104330, 0 - 60 psi Spring | 104331, 0 - 140 psi Spring | 104332, 10 - 200 psi Spring | 104334, 0 - 140 psi Gauge Flush Mount
Specifications Temperature Range
23 to 140 ºF
