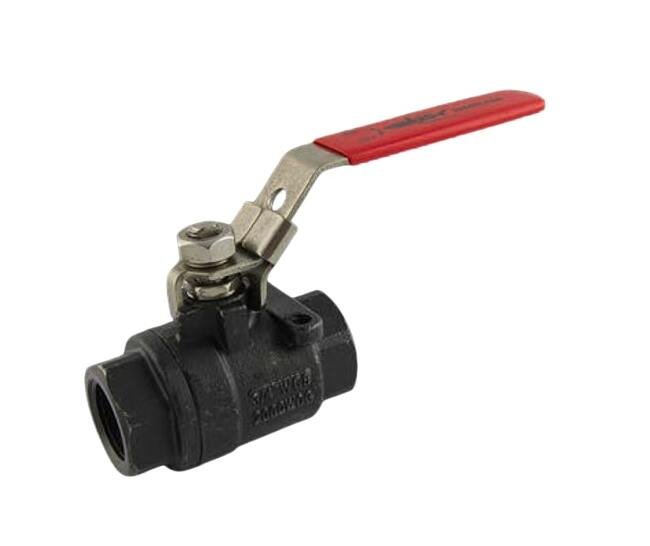

2006HLC Series 3" Seal Welded Valve

Name: 2006HLC Series 3" Seal Welded Valve
Brand: Superlok-Mako Products LLC
SKU: 200-38c343
Price: 149.99 USD
Availability: OutOfStock

SKU:200-38c343

High-quality 2006HLC Series 3" Seal Welded Valve with ASME B1.20.1 Standards, Blowout-Proof Stem, and Locking Handle.

$149.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 2006HLC Series 3" Seal Welded Valve is engineered to meet the demanding requirements of industrial applications. With a 3-inch port size and a pressure rating of 1000 psi, this valve ensures reliable performance. Compliant with the American Society of Mechanical Engineers (ASME) B1.20.1 standards, it features a blowout-proof stem, PTFE/RPTFE seal, and a locking handle for enhanced safety and durability. Suitable for a wide range of applications, this valve delivers exceptional quality and performance.

Product Specifications

Features Features

Threads Conform to ASME B1.20.1 (NPT)Blow Out Proof StemPTFE/RPTFE Seal and PackingLocking Handle

Technical Specs Dimension A

7.6 in

Technical Specs Dimension B

3.15 in

Technical Specs Industry Standards

American Society of Mechanical Engineers (ASME) B1.20.1

Technical Specs Port Size

3 in

Technical Specs Pressure Rating

1000 psi

Technical Specs Thread Type

National Pipe Thread (NPT)

Technical Specs Weight

10.1 kg | 22.3 lb

2006HLC Series 3" Seal Welded Valve
