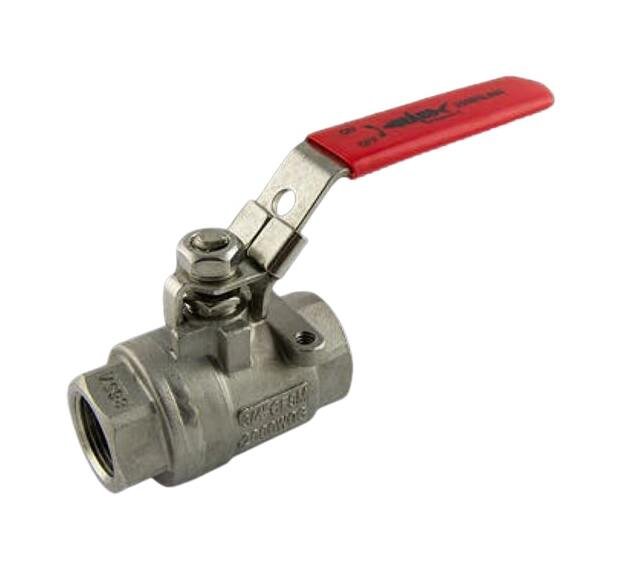

2006HLS Series 1-1/2 Inch Seal Welded Valve
2006HLS Series 1-1/2 Inch Seal Welded Valve
SKU:200-016641
Get reliable, leak-proof performance with the 2006HLS Series 1-1/2 Inch Seal Welded Valve. ASME B1.20.1 compliant, 2000 psi rating, NPT threads, and more.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
2006HLS Series 1-1/2 Inch Seal Welded Valve
$89.99
Quantity: 1
Claim Your Seller Account
2006HLS Series 1-1/2 Inch Seal Welded Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 2006HLS Series 1-1/2 Inch Seal Welded Valve is a high-quality industrial valve built to meet the stringent standards set by the American Society of Mechanical Engineers (ASME) B1.20.1. Featuring a 2000 psi pressure rating and a blow-out proof stem, this two-piece valve ensures reliable performance in demanding applications. With National Pipe Thread (NPT) for secure connections, PTFE/RPTFE seals for leak-proof operation, and a locking handle for added safety, this valve is ideal for institutional and industrial use.
Product Specifications
Features Features
Threads Conform to ASME B1.20.1 (NPT)Blow Out Proof StemPTFE/RPTFE Seal and PackingLocking Handle
Technical Specs Dimension A
4.65 in
Technical Specs Dimension B
1.55 in
Technical Specs Industry Standards
American Society of Mechanical Engineers (ASME) B1.20.1
Technical Specs Port Size
1-1/2 in
Technical Specs Pressure Rating
2000 psi
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Weight
2.0 kg | 4.4 lb
