2006HLS Series 1/2 Inch Seal Welded Valve
2006HLS Series 1/2 Inch Seal Welded Valve
SKU:200-900990
High-performance 1/2 inch Seal Welded Valve with ASME standards compliance for industrial applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
2006HLS Series 1/2 Inch Seal Welded Valve
$89.99
Quantity: 1
Claim Your Seller Account
2006HLS Series 1/2 Inch Seal Welded Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

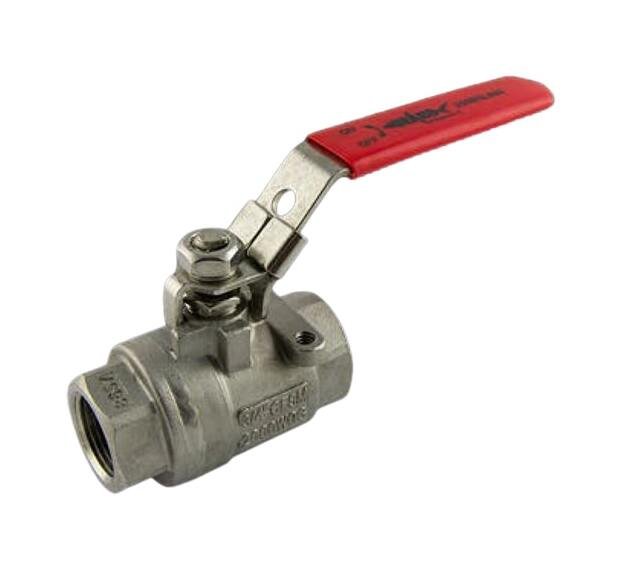

The 2006HLS Series 1/2 Inch Seal Welded Valve is a precision-engineered two-piece valve designed for optimal performance in industrial applications. With a sturdy construction and a 1/2 inch port size meeting National Pipe Thread (NPT) standards, this valve ensures reliable operation under pressures of up to 2000 psi. Its dimensions of 2.52 inches (Dimension A) and 0.59 inches (Dimension B) make it a versatile choice for various installations. The valve features a blowout-proof stem, PTFE/RPTFE seal and packing, and a locking handle for added safety and security. Threads conform to the American Society of Mechanical Engineers (ASME) B1.20.1 standard, ensuring compatibility and seamless integration with existing systems.
Product Specifications
Features Features
Threads Conform to ASME B1.20.1 (NPT)Blow Out Proof StemPTFE/RPTFE Seal and PackingLocking Handle
Technical Specs Dimension A
2.52 in
Technical Specs Dimension B
0.59 in
Technical Specs Industry Standards
American Society of Mechanical Engineers (ASME) B1.20.1
Technical Specs Port Size
1/2 in
Technical Specs Pressure Rating
2000 psi
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Weight
0.3 kg | 0.7 lb
