2006HLS Series 1 Inch Seal Welded Valve
2006HLS Series 1 Inch Seal Welded Valve
SKU:200-146ed6
Top-quality 1 inch seal welded valve with ASME B1.20.1 threads, blow out proof stem, and locking handle for precise flow control and safety.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
2006HLS Series 1 Inch Seal Welded Valve
$89.99
Quantity: 1
Claim Your Seller Account
2006HLS Series 1 Inch Seal Welded Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

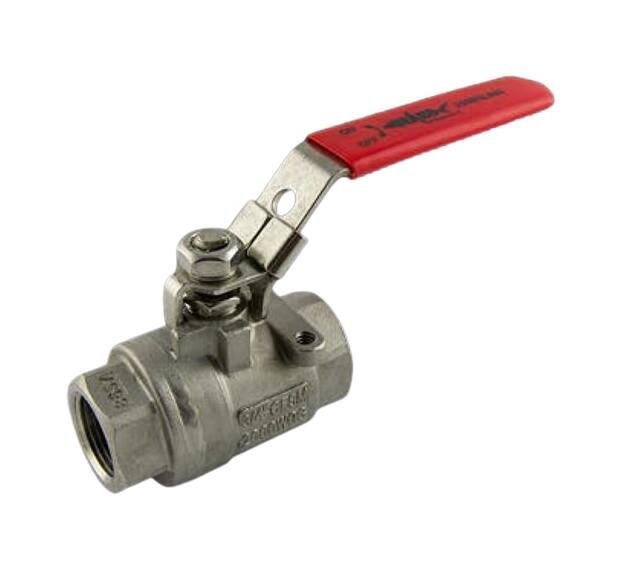

The 2006HLS Series 1 Inch Seal Welded Valve is a top-quality two-piece valve designed for durability and precise flow control. With a port size of 1 inch and a pressure rating of 2000 psi, this valve is suitable for a wide range of industrial applications. It features threads that conform to ASME B1.20.1 (NPT), a blow out proof stem, PTFE/RPTFE seal and packing, and a locking handle for added safety. This valve meets the rigorous standards set by the American Society of Mechanical Engineers (ASME) B1.20.1, ensuring reliable performance and compliance in demanding environments.
Product Specifications
Features Features
Threads Conform to ASME B1.20.1 (NPT)Blow Out Proof StemPTFE/RPTFE Seal and PackingLocking Handle
Technical Specs Dimension A
3.54 in
Technical Specs Dimension B
0.98 in
Technical Specs Industry Standards
American Society of Mechanical Engineers (ASME) B1.20.1
Technical Specs Port Size
1 in
Technical Specs Pressure Rating
2000 psi
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Weight
0.9 kg | 1.9 lb
