The 200m HD Well Inspection Camera by Fiberscope.net is a cutting-edge solution for thorough well inspections, mine shaft surveys, and underground evaluations. Featuring a 45mm dual camera head with super bright LEDs, this camera delivers crisp images for in-depth assessments. With a waterproof rating of IP68 and a durable 8mm cable, it can withstand challenging environments up to 30 bar pressure. The mechanical brake and hand winch ensure precise control during inspections, while the 8" IPS LCD monitor allows for real-time capture and playback. Ideal for well casing inspections, groundwater monitoring, and more.
Product Specifications
Additional Information

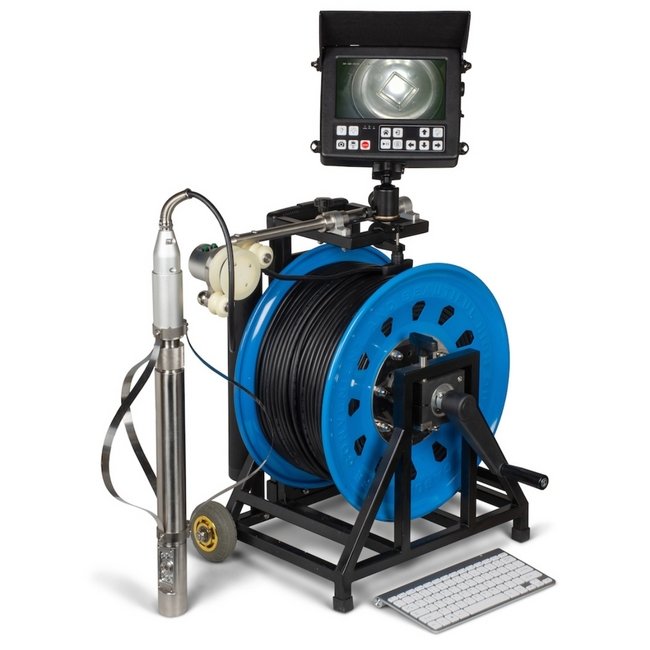

The HD WELL Camera is a specially designed unit able to conduct quality inspections for long downward distances. It is excellently suited for inspecting various reservoirs, shafts, pipes, and tanks. Equipped with a 45mm (1.77") diameter dual camera head, the unit delivers crisp and clear images of the inspection area. This is made possible with two HD cameras integrated into the head, one on the side and one looking downwards. These cameras have extra bright LED lights that deliver clear and quality captures. With a waterproof level of IP68, the camera head can withstand pressure up to 30 bar (1000ft). The robust and flexible double-twisted cable with a diameter of 8mm(0.31") has the capability of reaching up to 200m(656.1'). A mechanical brake and a hand winch make the control of the camera inspection depth quick and effective. The footage counter, secured to the extension arm, tracts the cable length and displays it on the monitor. The compact and splash-proof 8" IPS LCD display features image and video capture, playback on-site, and camera head control. A wireless splash-proof keyboard system makes text generation easy and quick. The HD WELL Camera is a quick, durable, and effective solution for inspecting wells, mines, and conducting underground surveys.
Applications
Well Casing InspectionsStratigraphy SurveysGround Waterflow MonitoringUnderground Well Equipment InspectionsMine Shaft Inspections
Features
Mechanical BrakeIndustrial Grade Steel FrameSuperbright LED IlluminationExtension Arm with Tension Mechanism
Technical Specs Battery Operated
Yes
Technical Specs Brands
Fiberscope.net by MEDIT
Technical Specs Camera Types
Dual View
Technical Specs Footage Counter
Yes
Technical Specs Head Diameter
1.77 in | 45 mm
Technical Specs Imagevideo Capture
Yes
Technical Specs Interchangeable Heads
No
Technical Specs Length
656.1 ft | 200 m
Technical Specs Monitor Size
8 in
Technical Specs Monitor Type
In-Plane Switching Liquid Crystal Display (IPS LCD)
Technical Specs Note
Available for Rent
Technical Specs Text Generator
Yes
Technical Specs Waterproof
Ingress Protection (IP68)
