200mm Bare Machined Aluminum Platen Heater
200mm Bare Machined Aluminum Platen Heater
SKU:200-0ec02f
Efficient 200mm Bare Machined Aluminum Platen Heater for semiconductor processing, offering precise temperature control and rapid deployment.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
200mm Bare Machined Aluminum Platen Heater
$1,499.99
Quantity: 1
Claim Your Seller Account
200mm Bare Machined Aluminum Platen Heater
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

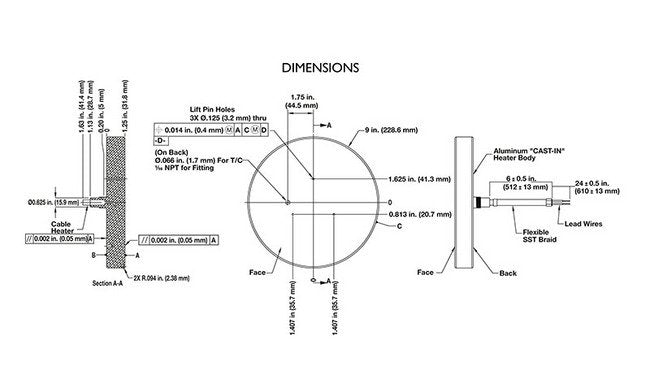

The 200mm Bare Machined Aluminum Platen Heater is a cost-effective solution designed for semiconductor processing and research. Built with Aluminum Alloy 356, this heater offers a surface flatness of < 0.0005 in | 0.013 mm and a surface temperature uniformity of ±0.3% of the set point, ensuring precise wafer processing. With a maximum power of 2241W and operating temperatures up to 752 ºF (400 ºC), this heater guarantees world-class performance and reliability. Ideal for prototype trials or temporary repairs, it can be shipped within one business day, making it a versatile option for institutions seeking efficient wafer processing solutions.
Product Specifications
Additional Information 0
This platen heater design is ideal for prototype machine trials or engineering experiments as well as temporary repairs until custom heaters can be manufactured. CAS platen heaters provide a complete turnkey solution and are available in anodized finish, or in bare machined aluminum 356 with optional add-on features. The stock anodized cast aluminum platen heaters are complete, ready to install parts and are available for shipment within one business day.Part is ultrasonic washed followed by IPA wipe down prior to packaging.
Applications 0
Semiconductor processing.Semiconductor research and development.
Features And Benefits 0
Stock deliveryAssures a cost effective option for 200 and 300 mm wafer processing.World class performance"Cast-in" reliability assures long product life.Operating temperatures up to 752 ºF (400 ºC) for a wide range of process applications.Surface temperature uniformity of ±0.3% of set point assures wafer processing accuracy.
Specifications Cleaning
Ultrasonic wash followed by IPA wipe down
Specifications Delivery Time
4 to 6 weeks
Specifications Heater Shape
Platen
Specifications Material
Aluminum Alloy 356
Specifications Maximum Power
2241 W
Specifications Maximum Voltage
240 V
Specifications Surface Flatness
< 0.0005 in | 0.013 mm
Specifications Surface Temperature Uniformity
±0.3% of set point based on measurements at laboratory ambient conditions

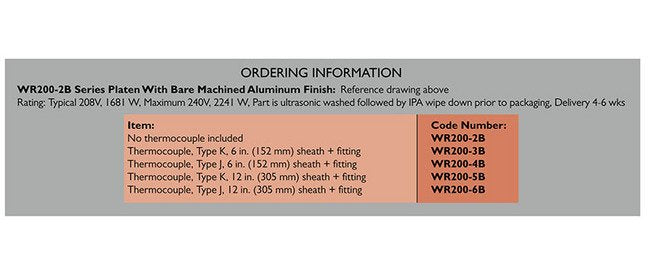

Specifications Thermocouple Type
J, 6 in. (152 mm) Sheath + Fitting
Specifications Power
1681 W
Specifications Voltage
208 V
