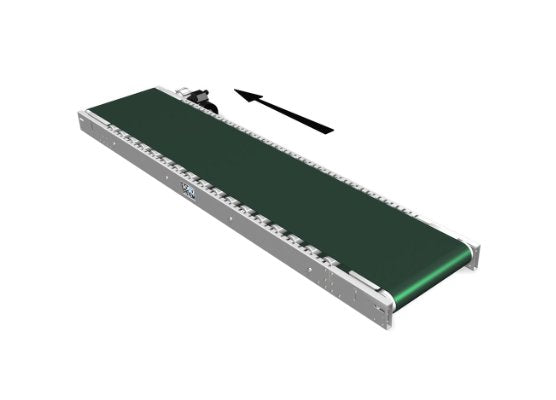

200mm x 10000mm Belt Conveyor with Roller Bedding
200mm x 10000mm Belt Conveyor with Roller Bedding
SKU:PAC-50f992
High-quality 200mm x 10000mm Belt Conveyor with Roller Bedding for efficient packaging operations. Durable, efficient, and customizable for various applications.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
200mm x 10000mm Belt Conveyor with Roller Bedding
$2,499.99
Quantity: 1
Claim Your Seller Account
200mm x 10000mm Belt Conveyor with Roller Bedding
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 200mm x 10000mm Belt Conveyor with Roller Bedding is a high-quality solution for efficient material handling in packaging operations. Manufactured by SOCO, this conveyor features impact-proof plastic conveying tubes with a 48mm diameter and electro-galvanized steel frames for durability. The drive unit options of 0.12 kW and 0.37 kW, along with the standard conveying gear (40:1) providing a speed of 10m/min, ensure smooth and reliable operation. With low noise levels, smooth surfaces, and compatibility with various accessories like grip belts and supports, this conveyor offers an economical and versatile solution for both new and existing systems. Ideal for long-distance transportation, this conveyor can be customized for motor placement preferences.
Product Specifications
Accessories Accessories
Grip Belts for Belt Conveyors | Smooth Belts for Belt Conveyors | Supports for Belt Conveyors and Driven Roller Conveyors
Additional Information Additional Information
OrderingFirst choose a conveyor of the desired length and width. Then choose a belt of a corresponding length and width.
Dimensions Length
10000 mm
Dimensions Width
200 mm
Features Features
If the motor needs to be mounted on the left side, this must be stated upon ordering.The construction makes the conveyors ideal for new as well as existing systems.Low noise level and smooth surfaces.An economical solution for long-distance transportation.
Note Note
As standard, the motor is fitted on the right side of the belt conveyor, seen in the direction of travel.Subject to alteration.
Specifications Conveying Tubes Diameter
48 mm
Specifications Conveying Tubes Material
Impact Proof Plastic
Specifications Drive Unit
0.12 kW | 0.37 kW
Specifications Frames
Electro-Galvanized Steel
Specifications Standard Conveying Gear 401
10 m/min
