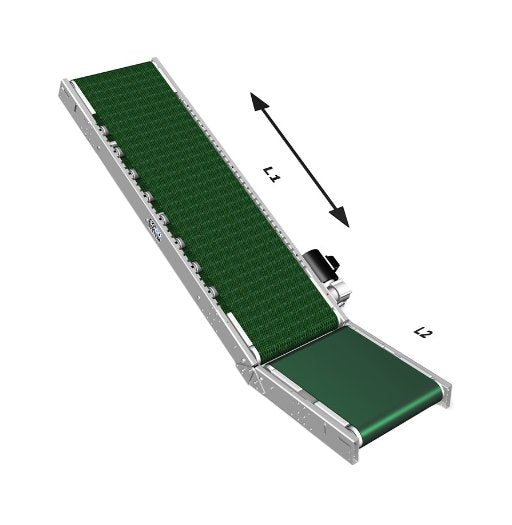

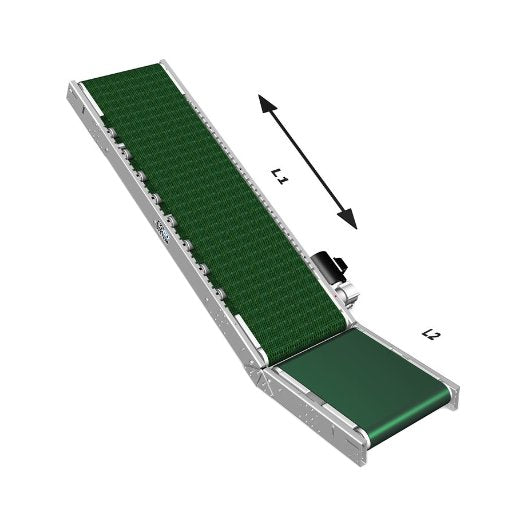

200mm x 2500mm Belt Conveyor with Booster

Name: 200mm x 2500mm Belt Conveyor with Booster
Brand: TPC Packaging Solutions
SKU: PAC-eb1d05
Price: 2899.99 USD
Availability: OutOfStock

SKU:PAC-eb1d05

Enhance material handling with precision-built 200mm x 2500mm Belt Conveyor with 1m Booster. Ideal for gentle vertical or horizontal transport. Contact sales for customization.

$2,899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your material handling efficiency with the 200mm Width, 2500mm Length Belt Conveyor featuring a 1 Meter Booster. Manufactured with precision according to your requirements, this conveyor, equipped with electro-galvanized steel frames and smooth/grip belts, offers gentle transport both vertically and horizontally. With a conveying speed of 10 m/min, accessories like supports and various bedding options ensure optimal performance. Contact our sales department for customization options to meet specific industry needs.

Product Specifications

Accessories Accessories

Supports for Belt Conveyors and Driven Roller Conveyors

Additional Information Additional Information

BeltAs standard, the booster is fitted with a smooth belt and the conveyor with a grip belt. 0.5 m long boosters wider than 400 mm are always delivered with belts with guide profile.Contact our sales department regarding food belts and other belt types.BeddingAs standard, 0.5 m long and 400 mm wide boosters are supplied with grooved plate bedding. Conveyors and boosters of 1 m are supplied with roller bedding.Contact our sales department if another bedding is required.OrderingChoose a booster of the desired width and length (the booster is the horizontal conveyor).Then choose the length of the incline conveyor. The item number is stated under the booster.Then choose the belt.Ideal for wide transfer angles.

Dimensions Booster Length L2

1.0 m

Dimensions Conveyor Length L1

2500 mm

Dimensions Width

200 mm

Note Note

A minimum of three supports is required for a conveyor with booster.As standard, the motor is fitted on the left side of the booster. For mounting on the other side, please specify this upon ordering.Subject to alteration.

Specifications Frames

Electro-Galvanized Steel

Specifications Standard Conveying Gear 401

10 m/min

200mm x 2500mm Belt Conveyor with Booster
