200mm x 2500mm Belt Conveyor with Roller Bedding
200mm x 2500mm Belt Conveyor with Roller Bedding
SKU:PAC-f83eb8
High-performance 200mm x 2500mm Belt Conveyor with Roller Bedding for efficient material handling.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
200mm x 2500mm Belt Conveyor with Roller Bedding
$2,899.99
Quantity: 1
Claim Your Seller Account
200mm x 2500mm Belt Conveyor with Roller Bedding
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

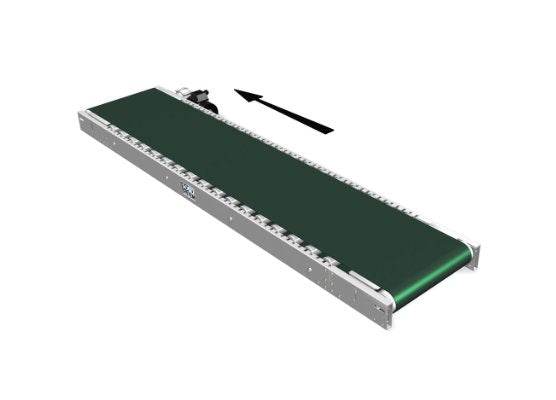

The 200mm x 2500mm Belt Conveyor with Roller Bedding is a top-of-the-line solution for efficient material handling. Manufactured by SOCO, this conveyor features impact-proof plastic conveying tubes, electro-galvanized steel frames, and a low-noise drive unit available in 0.12 kW or 0.37 kW options. With a standard conveying gear ratio of 40:1, this conveyor can reach speeds of 10 m/min, making it ideal for long-distance transportation. Additional accessories like Grip Belts and Supports enhance its versatility, while the option to mount the motor on either side adds customization for seamless integration into new or existing systems.
Product Specifications
Accessories Accessories
Grip Belts for Belt Conveyors | Smooth Belts for Belt Conveyors | Supports for Belt Conveyors and Driven Roller Conveyors
Additional Information Additional Information
OrderingFirst choose a conveyor of the desired length and width. Then choose a belt of a corresponding length and width.
Dimensions Length
2500 mm
Dimensions Width
200 mm
Features Features
If the motor needs to be mounted on the left side, this must be stated upon ordering.The construction makes the conveyors ideal for new as well as existing systems.Low noise level and smooth surfaces.An economical solution for long-distance transportation.
Note Note
As standard, the motor is fitted on the right side of the belt conveyor, seen in the direction of travel.Subject to alteration.
Specifications Conveying Tubes Diameter
48 mm
Specifications Conveying Tubes Material
Impact Proof Plastic
Specifications Drive Unit
0.12 kW | 0.37 kW
Specifications Frames
Electro-Galvanized Steel
Specifications Standard Conveying Gear 401
10 m/min
