200mm x 4500mm Belt Conveyor with 0.5m Booster
200mm x 4500mm Belt Conveyor with 0.5m Booster
SKU:PAC-68c568
Efficient and gentle transport with the 200mm x 4500mm Belt Conveyor and 0.5m Booster for packaging needs.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
200mm x 4500mm Belt Conveyor with 0.5m Booster
$2,499.99
Quantity: 1
Claim Your Seller Account
200mm x 4500mm Belt Conveyor with 0.5m Booster
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 200mm x 4500mm Belt Conveyor with a 0.5m Booster is designed for efficient and gentle transport, whether inclined or horizontal. Manufactured with Electro-Galvanized Steel frames, it features a Standard Conveying Gear ratio of 40:1, running at 10 m/min speed. This conveyor comes with smooth and grip belts, supports, and optional bedding choices. Ideal for wide transfer angles, it provides reliable performance and customizable configurations to meet diverse requirements.
Product Specifications
Accessories Accessories
Supports for Belt Conveyors and Driven Roller Conveyors
Additional Information Additional Information
BeltAs standard, the booster is fitted with a smooth belt and the conveyor with a grip belt. 0.5 m long boosters wider than 400 mm are always delivered with belts with guide profile.Contact our sales department regarding food belts and other belt types.BeddingAs standard, 0.5 m long and 400 mm wide boosters are supplied with grooved plate bedding. Conveyors and boosters of 1 m are supplied with roller bedding.Contact our sales department if another bedding is required.OrderingChoose a booster of the desired width and length (the booster is the horizontal conveyor).Then choose the length of the incline conveyor. The item number is stated under the booster.Then choose the belt.Ideal for wide transfer angles.

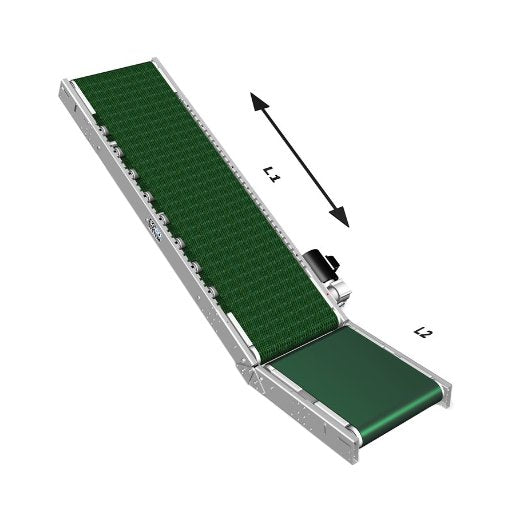

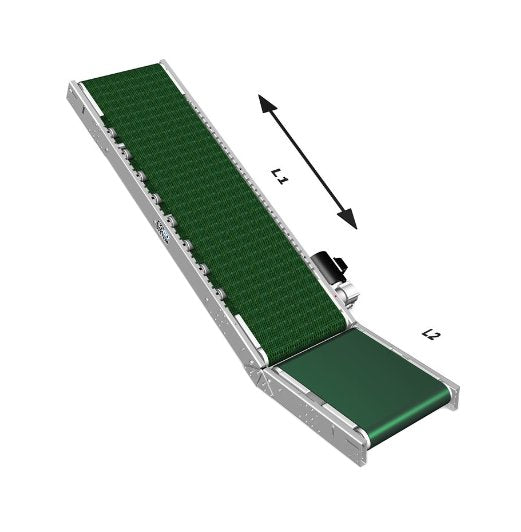

Dimensions Booster Length L2
0.5 m
Dimensions Conveyor Length L1
4500 mm
Dimensions Width
200 mm
Note Note
A minimum of three supports is required for a conveyor with booster.As standard, the motor is fitted on the left side of the booster. For mounting on the other side, please specify this upon ordering.Subject to alteration.
Specifications Frames
Electro-Galvanized Steel
Specifications Standard Conveying Gear 401
10 m/min
