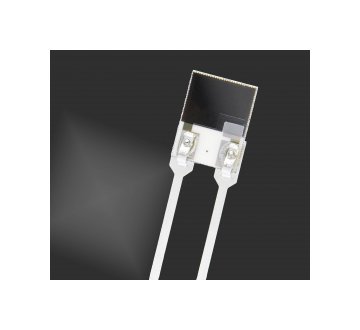

200pF Capacitance Humidity Sensor
200pF Capacitance Humidity Sensor
SKU:HUM-f5ac05
High-precision 200pF Capacitance Humidity Sensor for accurate measurements in low humidity ranges.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
200pF Capacitance Humidity Sensor
$59.99
Quantity: 1
Claim Your Seller Account
200pF Capacitance Humidity Sensor
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 200pF Capacitance Humidity Sensor, manufactured by Innovative Sensor Technology, USA Division, is a high-precision sensor designed for accurate humidity measurements in low humidity ranges. This sensor operates within an impressive range of 0 to 100% relative humidity and can withstand temperatures from -40 to +150 ºC. With a capacitance of 200pF ± 50pF and RoHS compliance, this sensor ensures reliable and precise measurements. The wire type, CuP-SIL post-plated with tin, and compact dimensions of 5.0mm x 3.81mm x 0.4mm make it ideal for various applications requiring humidity sensing.
Product Specifications
Dimensions Height
0.4 mm
Dimensions Length
5.0 mm
Dimensions Width
3.81 mm
Specifications Capacitance
200 pF
Specifications Capacitance Tolerance At 23 Degree Celsius C Temp
50 pF
Specifications Manufacturer Part Number
K5 (200pF ± 50pF)
Specifications Old Product Code
040.00146
Specifications Operating Relative Humidity Rh Range
0 to 100 %
Specifications Operating Temperature Range
-40 to +150 ºC
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Wire Length
10 mm
Specifications Wire Type
CuP-SIL Post-Plated with Tin (Sn)
