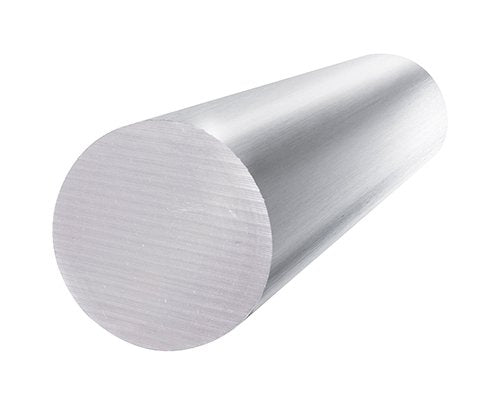

2017 Aluminum Rounds - High-Strength Machinable Alloy
2017 Aluminum Rounds - High-Strength Machinable Alloy
SKU:ALU-d7f1ef
Discover the durability and machinability of 2017 Aluminum Rounds - Perfect for heavy-duty structural parts with high strength and toughness. ASTM B211, AMS 4118 compliant.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
2017 Aluminum Rounds - High-Strength Machinable Alloy
$45.99
Quantity: 1
Claim Your Seller Account
2017 Aluminum Rounds - High-Strength Machinable Alloy
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 2017 Aluminum Rounds Series offers a perfect balance of exceptional machinability and high strength, making it a top choice for automatic screw machine work. With a tough and ductile composition, these rounds are ideal for heavy-duty structural components. Featuring a 2017-T451 temper, a diameter of 1.75 inches, and meeting ASTM B211, AMS 4118, and UNS A92017 specifications, these rounds deliver an ultimate strength of 62 ksi, yield strength of 40 ksi, and excellent workability. Perfect for screw machine products and fittings, this aluminum alloy combines reliability with performance.
Product Specifications
Aluminum Alloy Designations 0
The aluminum industry uses a four-digit index system for the designation of its wrought aluminum alloys.As outlined below, the first digit indicates the alloy group according to the major alloying elements.1xxx SeriesIn this group minimum aluminum content is 99% and there is no major alloying element. The second digit indicates modifications in impurity limits. If the second digit is zero, there is no special control on individual impurities. Digits 1 through 9, which are assigned consecutively as needed, indicate special control of one or more individual impurities. The last two digits indicate specific minimum aluminum content. Although the absolute minimum aluminum content in this group is 99%, the minimum for certain grades is higher than 99%, and the last two digits represent the hundredths of a per cent over 99. Thus, 1030 would indicate 99.30% minimum aluminum. without special control on individual impurities. The designations 1130, 1230, 1330, etc.. indicate the same purity with special control on one or more impurities. Likewise 1100 indicates minimum aluminum content of 99.00% with individual impurity control.2xxx through 9xxx SeriesThe major alloying elements are indicated by the first digit, as follows: 2xxx Copper3xxx Manganese4xxx Silicon5xxx Magnesium6xxx Magnesium and silicon7xxx Zinc8xxx Other element9xxx Unused seriesThe second digit indicates alloy modification. If the second digit is zero. it indicates the original alloy: digits 1 through 9, which are assigned consecutively, indicate alloy modifications. The last two digits have no special significance, serving only to identify the different alloys in the group.Experimental AlloysExperimental alloys are designated according to the four digit system, but they are prefixed by the letter X. The prefix is dropped when the alloy becomes standard. During development, and before they are designated as experimental, new alloys are identified by serial numbers assigned by their originators. Use of the serial number is discontinued when the X number is assigned.
Comparative Characteristics And Applications Applications
Screw machine products, fittings
Comparative Characteristics And Applications Arc Weldability
B
Comparative Characteristics And Applications Brazeability
D
Comparative Characteristics And Applications Gas Weldability
D
Comparative Characteristics And Applications Mechinability
B
Comparative Characteristics And Applications Resistance Spot And
B
Comparative Characteristics And Applications Resistance To Corro
D
Comparative Characteristics And Applications Stress Corrosion Cr
C
Comparative Characteristics And Applications Workability Cold
C
Specifications Astm Specification
AMS 4118 | AMS-QQ-A-225/5 | ASTM B211 | UNS A92017
Specifications Density
0.101 lbs/in³
Specifications Diameter
1.75 inches | 44.45 mm
Specifications Estimated Weight
2.915 lbs/ft | 4.338103 kg/m
Specifications Estimated Weight Per 12 Bar
34.98 lbs | 15.866662152 kg
Specifications Grade
2017
Specifications Material
Aluminum
Specifications Series
2017-T451
Specifications Shapeform
Round
Specifications Specific Gravity
2.79
Specifications Temper
T451
Specifications Ultimate Strength
62 ksi
Specifications Yield Strength
40 ksi
Mechanical Properties Elongation Percent In 2 Inches
22
Mechanical Properties Fatigue Endurance Limit
20 ksi
Mechanical Properties Hardness Brinnel Number
105
Mechanical Properties Modulus Of Elasticity
10.6 x 104 ksi
Mechanical Properties Ultimate Shearing Strength
38 ksi
