204 Bearing Stationary Switches for Reliance Electric Motors
204 Bearing Stationary Switches for Reliance Electric Motors
SKU:MOT-af196f
High-quality 204 Bearing Stationary Switches for Reliance Electric motors, designed for motor repairs with 6204 bearings.
Regular price
$34.95
Regular price
Sale price
$34.95
Unit price
per
Initiate Order
204 Bearing Stationary Switches for Reliance Electric Motors
$34.95
Quantity: 1
Claim Your Seller Account
204 Bearing Stationary Switches for Reliance Electric Motors
$34.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

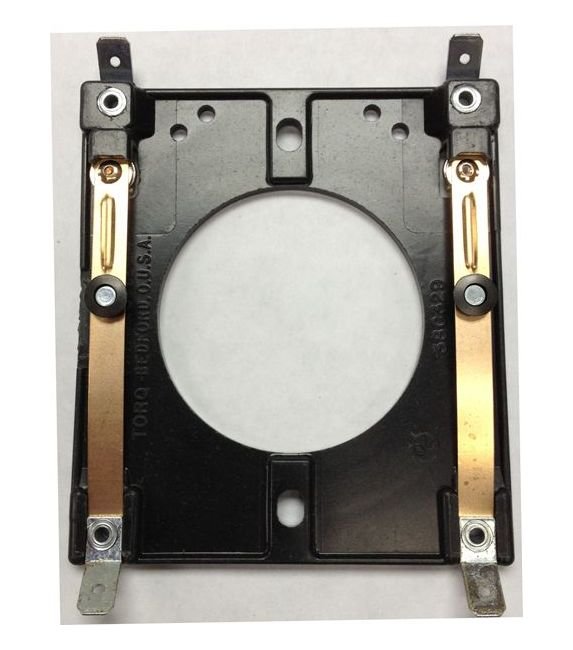

The 204 Bearing Stationary Switches are specifically designed for motor repairs using 6204 bearings, compatible with Reliance Electric motors. Manufactured by RELIANCE ELECTRIC with part number 75B04, these switches feature LH Contact: D.T., RH Contact: N.O., Contact Diameter: 5/16 in, 2 sets, Bottom Jumper, and Mounting Centers at 2 3/4 in. With Dimensions of 1 7/8 in Hole Diameter, 2 3/4 x 3 7/8 in Length x Width, and Button Centers at 2 3/16 in, these switches ensure precise and reliable performance for your stationary switch replacement needs.
Product Specifications
Contacts Contact Diameter
5/16 in
Contacts Jumper
Bottom
Contacts Lh Contact
D.T.
Contacts Mounting Centers
2 3/4 in
Contacts Of Sets
2
Contacts Rh Contact
N.O.
Dimensions Button Centers
2 3/16 in
Dimensions Hole Diameter
1 7/8 in
Dimensions Length X Width
3 3/4 x 3 7/8 in
Specifications Bearing
204
Specifications List Price
34.95 USD
Specifications Manufacturer Part Number
75B04
Specifications Motor Manufacturer
RELIANCE ELECTRIC
