204 Bearing Stationary Switches - Reliance Electric 77B14
204 Bearing Stationary Switches - Reliance Electric 77B14
SKU:MOT-b85d4a
Upgrade motor repair with 204 Bearing Stationary Switches - Reliance Electric 77B14 for 6204 bearings.
Regular price
$35.50
Regular price
Sale price
$35.50
Unit price
per
Initiate Order
204 Bearing Stationary Switches - Reliance Electric 77B14
$35.50
Quantity: 1
Claim Your Seller Account
204 Bearing Stationary Switches - Reliance Electric 77B14
$35.50
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your motor repair with the 204 Bearing Stationary Switches designed for motors featuring 6204 bearings. Manufactured by Reliance Electric with part number 77B14, these switches offer N.O. LH and RH contacts, 5/16" contact diameter, 2 sets included, NO jumper, and 3 3/16" mounting centers. Dimensions include a 2" hole diameter, 2 1/2" button centers, and a compact 4 1/4" x 4 7/16" x 4 3/8" size. The TORQ replacement part, though visually different, ensures seamless functionality within your motor.
Product Specifications
Contacts Contact Diameter
5/16 in
Contacts Jumper
NO
Contacts Lh Contact
N.O.
Contacts Mounting Centers
3 3/16 in
Contacts Of Sets
2
Contacts Rh Contact
N.O.
Dimensions Button Centers
2 1/2 in
Dimensions Hole Diameter
2 in
Dimensions Length X Width
4 1/4 in | 4 7/16 x 4 3/8 in
Important Note 0

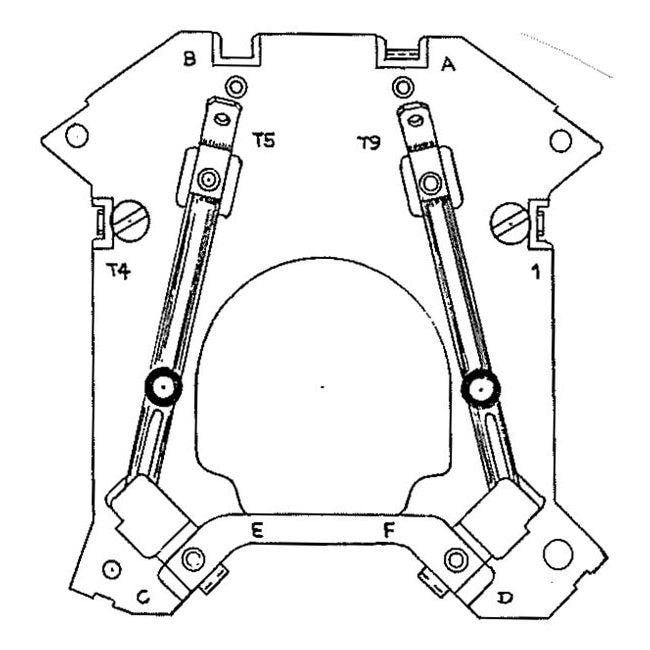

The picture above is the original OEM switch. The TORQ replacement part may look different but is designed to fit in the motor and perform the required functions.
Specifications Bearing
204
Specifications Figure Image
MA
Specifications List Price
35.50 USD
Specifications Manufacturer Part Number
77B14
Specifications Motor Manufacturer
RELIANCE ELECTRIC
