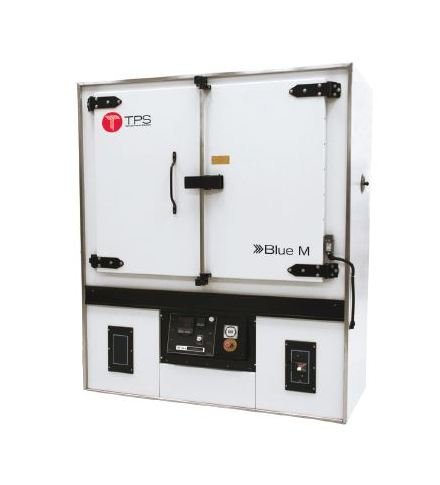

The Blue M Clean Room Mechanical Convection Oven is designed for a number of industrial oven applications, including curing polyamide coatings, moisture drying, baking photo-resist coating and various pharmaceutical processes.
Product Specifications
Specifications Ac Voltage At 1 Phase
208 V | 240 V
Specifications Ac Voltage At 3 Phase
208 V | 240 V | 480 V
Specifications Ambient Temperature
250 ºC
Specifications Clean Room Oven Options
24-hour, 7-day digital process timer | Casters | Circular chart recorder | Comm-Link RS-485 to RS-232 converter | Floorstands | Reverse door hinge | Stainless steel slotted shelves
Specifications Engineered Oven Options
All stainless steel exterior construction | Class 1000 clean room assembly and packaging | Flanged for through-the-wall mounting | Redundant over-temperature protection | Space-saving stack oven design | Special control systems
Specifications Exterior Depth
33.2 in | 843 mm
Specifications Exterior Height
51 in | 1295 mm
Specifications Exterior Width
35 in | 880 mm
Specifications Frequency
60 Hz
Specifications General Mechanical Convection Industrial Oven Spe
Uniformity: ± 1% of set point | Control Accuracy: +0.5°C | Resolution: ± 0.1°C | Temperature range: 15°C above ambient to 250°C
Specifications Interior Depth
18 in | 457 mm
Specifications Interior Height
19.7 in | 500 mm
Specifications Interior Volume
3.4 ft³
Specifications Interior Width
16.5 in | 419 mm
Specifications Line Current At 208 Volts V 1 Phase
17 A
Specifications Line Current At 208 Volts V 3 Phase
20 A
Specifications Line Current At 240 Volts V 1 Phase
20 A
Specifications Line Current At 240 Volts V 3 Phase
23 A
Specifications Line Current At 480 Volts V 3 Phase
12 A
Specifications Machine Footprint
8.1 ft²
Specifications Mechanical Convection Oven Features
All exterior panels are at least 16 gauge. | All welded and sealed construction assures continuously low particle counts | Baked-on powder-coated white enamel finish for long-lasting corrosion protection | Blue M silicone door seal design for positive sealing of door | Chamber vent port for exhausting of process by-products | Fiberglass insulation - 4 full inches minimizes heat loss | Heavy-gauge steel exterior and stainless steel interior. | Removable one-piece stainless steel interior features reinforced 304 stainless steel | Safety air flow switch on single-phase models. | Suitable for inert gas purge to eliminate moisture and vent out contaminants. Adjustable inert gas flow meter.
Specifications Oven Type
Bench Model
Specifications Rated Power At 208 Volts V 1 Phase
3 kW
Specifications Rated Power At 208 Volts V 3 Phase
6.8 kW
Specifications Rated Power At 240 Volts V 1 Phase
4 kW
Specifications Rated Power At 240 Volts V 3 Phase
9 kW
Specifications Rated Power At 480 Volts V 3 Phase
9 kW
Specifications Temperature
15 ºC
