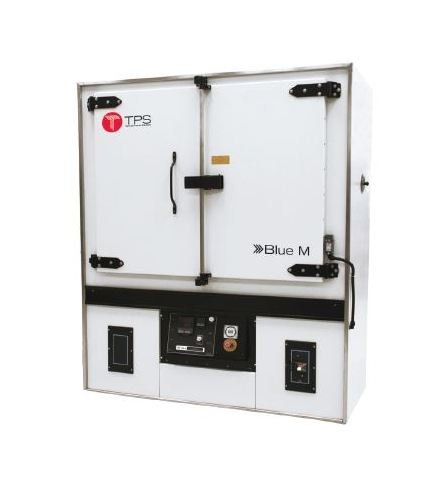

206 Bench Model Inert Gas Mechanical Convection Oven
206 Bench Model Inert Gas Mechanical Convection Oven
SKU:BLU-7eabe3
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
206 Bench Model Inert Gas Mechanical Convection Oven
$49.99
Quantity: 1
Claim Your Seller Account
206 Bench Model Inert Gas Mechanical Convection Oven
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Blue M Inert Gas Mechanical Convection Oven, which we pressure-test at normal operating levels, is ideal for industrial oven applications that involve processing materials in a controlled atmosphere environment, as well as dry packaging of electronic components.
Product Specifications
Specifications Ac Voltage At 1 Phase
208 V | 240 V
Specifications Ac Voltage At 3 Phase
208 V | 240 V | 480 V
Specifications Ambient Temperature
316 ºC | 600 ºF
Specifications Engineered Oven Options
All stainless steel exterior construction | Lead-in pipes | Rear access door(s) | Redundant over-temperature protection | Space-saving stack oven design | Special control systems
Specifications Exterior Depth
34 in | 864 mm
Specifications Exterior Height
57 in | 1448 mm
Specifications Exterior Width
40 in | 1016 mm
Specifications Frequency
60 Hz
Specifications General Specifications
Temperature range: 15°C above ambient to 316°C (600°F) | Uniformity: ± 1% of setpoint | Control Accuracy: +0.5°C | Resolution: ± 0.1°C | Performance data (typical): Run-up to 300°C 60 min. (or less)
Specifications Inert Gas Oven Options
24-hour, 7-day digital process timer | Casters | Circular chart recorder | Comm-Link RS-485 to RS-232 computer interface | Control and monitor software | Floorstands | Reverse door hinge | Stainless steel slotted shelves
Specifications Interior Depth
18 in | 457 mm
Specifications Interior Height
20 in | 508 mm
Specifications Interior Volume
4.2 ft³
Specifications Interior Width
20 in | 508 mm
Specifications Line Current At 208 Volts V 1 Phase
17 A
Specifications Line Current At 208 Volts V 3 Phase
20 A
Specifications Line Current At 240 Volts V 1 Phase
20 A
Specifications Line Current At 240 Volts V 3 Phase
23 A
Specifications Line Current At 480 Volts V 3 Phase
12 A
Specifications Machine Footprint
9.4 ft²
Specifications Oven Type
Bench Model
Specifications Rated Power At 208 Volts V 1 Phase
3 kW
Specifications Rated Power At 208 Volts V 3 Phase
6.8 kW
Specifications Rated Power At 240 Volts V 1 Phase
4 kW
Specifications Rated Power At 240 Volts V 3 Phase
9 kW
Specifications Rated Power At 480 Volts V 3 Phase
9 kW
Specifications Temperature
15 ºC
