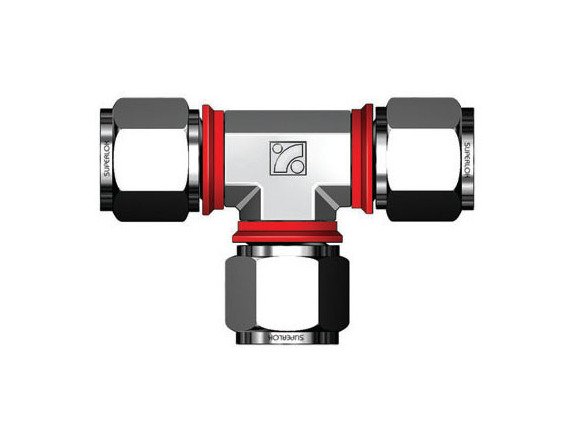

20mm Tube Outside Diameter Union Tee Fitting
20mm Tube Outside Diameter Union Tee Fitting
SKU:SUT-f71cf6
High-performance 20mm Tube Outside Diameter Union Tee Fitting for metric tube connections. Enhances safety and productivity in industrial settings.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
20mm Tube Outside Diameter Union Tee Fitting
$29.99
Quantity: 1
Claim Your Seller Account
20mm Tube Outside Diameter Union Tee Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SUTI Series 20mm Tube Outside Diameter Union Tee Fitting is a precision-engineered component that provides seamless connection for metric tubes. Crafted from high-quality materials like Alloy 625, Alloy 825, Stainless Steel, and more, this fitting ensures durability and reliability. Featuring i-Fitting® components for perfect compression, safety in high-pressure environments, and increased productivity, this industry-leading design by BMT offers unmatched performance. Ideal for valve connections, this fitting enhances efficiency and safety in diverse industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

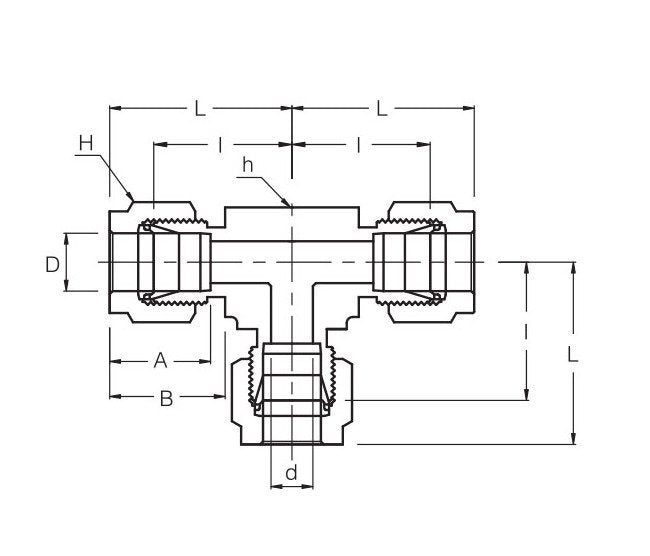

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
26.0 mm
Technical Specs Dimension B
22.0 mm
Technical Specs Dimension I
34.5 mm
Technical Specs Dimension L
44.6 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
15.9 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
20 mm
Technical Specs Width Across Flat H
32 mm
