20mm Tube Union Connector
20mm Tube Union Connector
SKU:SUI-328f56
Enhance tube connections with the SUI Series 20mm Tube Union Connector for precise compression and safety in high-pressure environments.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
20mm Tube Union Connector
$45.99
Quantity: 1
Claim Your Seller Account
20mm Tube Union Connector
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SUI Series 20mm Tube Union Connector is designed for precise metric tube connections, featuring durable materials such as Alloy 625, Alloy 825, and Stainless Steel. This innovative i-Fitting® component includes a built-in gap gauge for perfect compression, enhancing safety in high-pressure environments. With a patented design by BMT, this union solves tightening issues, improves productivity, and meets industry standards for valve connections.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

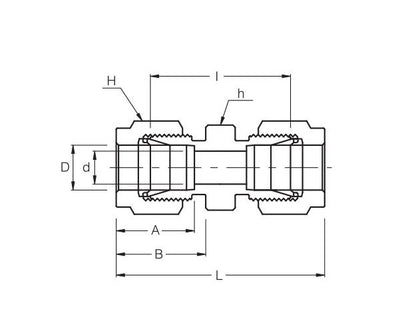

Technical Specs Dimension A
26.0 mm
Technical Specs Dimension B
22.0 mm
Technical Specs Dimension I
34.8 mm
Technical Specs Dimension L
55.0 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
15.9 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
20 mm
Technical Specs Width Across Flat H
32 mm
