20mm UM10 Grade Carbide Rod with Two Holes - Precision Ground

Name: 20mm UM10 Grade Carbide Rod with Two Holes - Precision Ground
Brand: Ultra-Met
SKU: SOL-00deb5
Price: 59.99 USD
Availability: OutOfStock

SKU:SOL-00deb5

High-precision 20mm UM10 Grade Carbide Rod with Two Holes for industrial machining projects.

$59.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

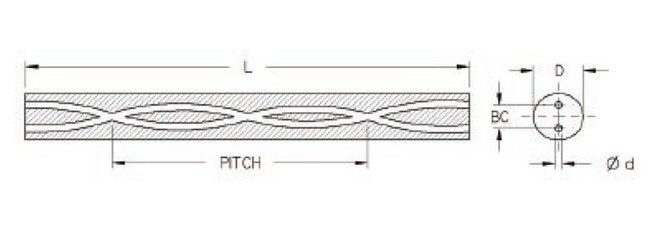

Enhance precision and durability in your machining projects with our 20mm UM10 Grade Carbide Rod. This two-hole rod features a polished finish, two 2.00mm holes, and a 30-degree precision ground design. With a length of 330mm and a between centers diameter of 9.9mm, this carbide rod ensures high performance and accuracy. Ideal for industrial applications requiring h6 ISO tolerance and a pitch of 108.83mm.

Product Specifications

Classifications Between Centers Bc Diameter

9.9 mm

Classifications Between Centers Bc Diameter Tolerance

0/-0.50 mm

Classifications Brands

Ultra-MetÂ®

Classifications Carbide Grade

UM10

Classifications Diameter

20 mm

Classifications Finish

Polished

Classifications Hole D

2.00 mm

Classifications Hole D Tolerance

0.25 mm

Classifications International Organization For Standardization I

Classifications Length

330 mm

Classifications Length Tolerance

+5 mm | 0 mm

Classifications Material

Carbide

Classifications Note

All inventory subject to prior sales.

Classifications Pitch

108.83 mm

Classifications Shipping Weight

1.724818226 Kilogram
