20mm UM10 Grade Precision Carbide Hole Rod
20mm UM10 Grade Precision Carbide Hole Rod
SKU:SOL-85c823
High-precision 20mm UM10 Grade Carbide Hole Rod for accurate machining operations.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
20mm UM10 Grade Precision Carbide Hole Rod
$45.99
Quantity: 1
Claim Your Seller Account
20mm UM10 Grade Precision Carbide Hole Rod
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

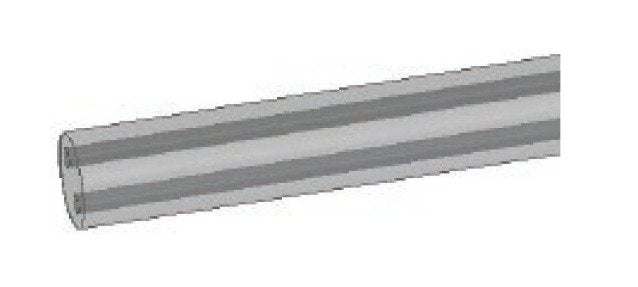

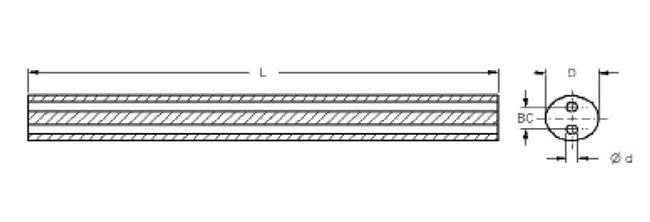

The 20mm UM10 Grade Precision Carbide Hole Rod is a high-grade solid carbide rod designed for precision machining applications. With a polished finish and a diameter of 20mm along with a length of 330mm (+5mm | 0mm tolerance), this rod ensures accurate and efficient machining operations. Featuring a 2.00mm coolant hole with a tight tolerance of ±0.30mm, and a BC diameter of 6.2mm with a tolerance of 0/-0.40mm, it meets the stringent UM10 carbide grade standards. The rod's h6 ISO tolerance type guarantees consistency and reliability in performance, making it ideal for industrial and institutional use.
Product Specifications
Classifications Between Centers Bc Diameter
6.2 mm
Classifications Between Centers Bc Diameter Tolerance
0/-0.40 mm
Classifications Brands
Ultra-Met®
Classifications Carbide Grade
UM10
Classifications Diameter
20.00 mm
Classifications Finish
Polished
Classifications Hole D
2.00 mm
Classifications Hole D Tolerance
0.30 mm
Classifications International Organization For Standardization I
h6
Classifications Length
330 mm
Classifications Length Tolerance
+5 mm | 0 mm
Classifications Material
Carbide
Classifications Note
All inventory subject to prior sales.
Classifications Shipping Weight
1.597687539 Kilogram
